Modern cabinetwork, furniture & fitments; an account of the theory & practice in the production of all kinds of cabinetwork & furniture, with chapters on the growth and progress of design and construction; (1910)
Wells, Percy A, Hooper, John · London, B.T. Batsford; New York, Jone Lane company · leaf 310

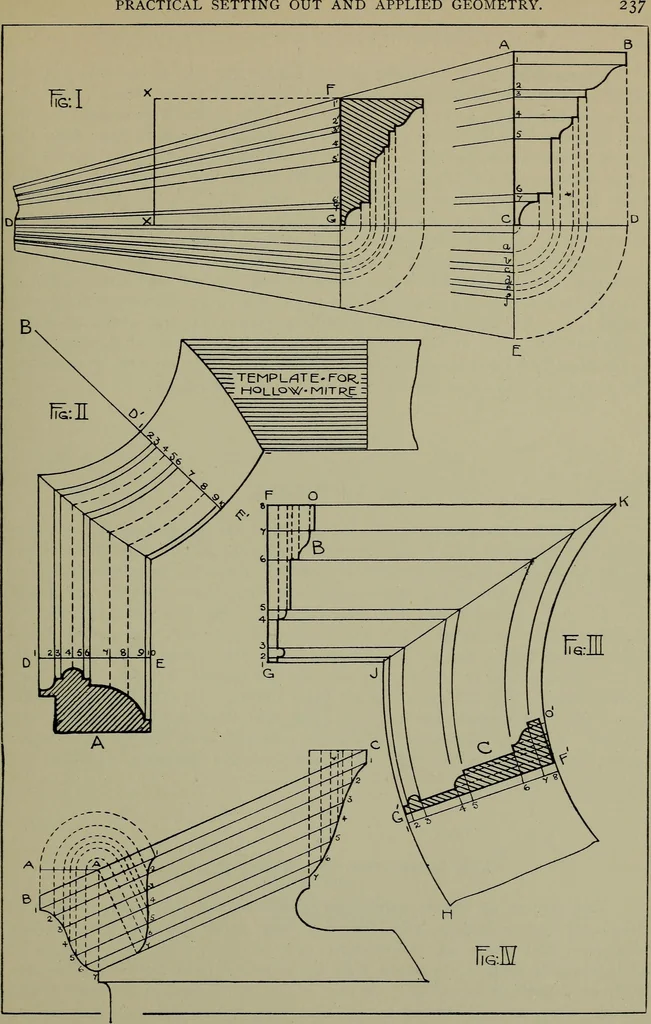

and straight mouldings, in this case a corner of a piece of framing,and also the section of moulding A. From the points numbered 1, 2, 3, 4, &c,erect perpendiculars. From point B draw the radius line and transfer thedivided line D E to d e. With compass point in B, describe arcs cutting the… … Methods of Diminishing Mouldings—Finding Curved Mitres andIntersection of Raked Mouldings. 238 MODERN CABINETWORK, FURNITURE, AND FITMENTS. Intersecting in a Straight Mitre Line.—Fig. in. shows this method,which is effected by altering the section of the curved piece. Make F G H I theoutline of…
Cabinetwork · Furniture
