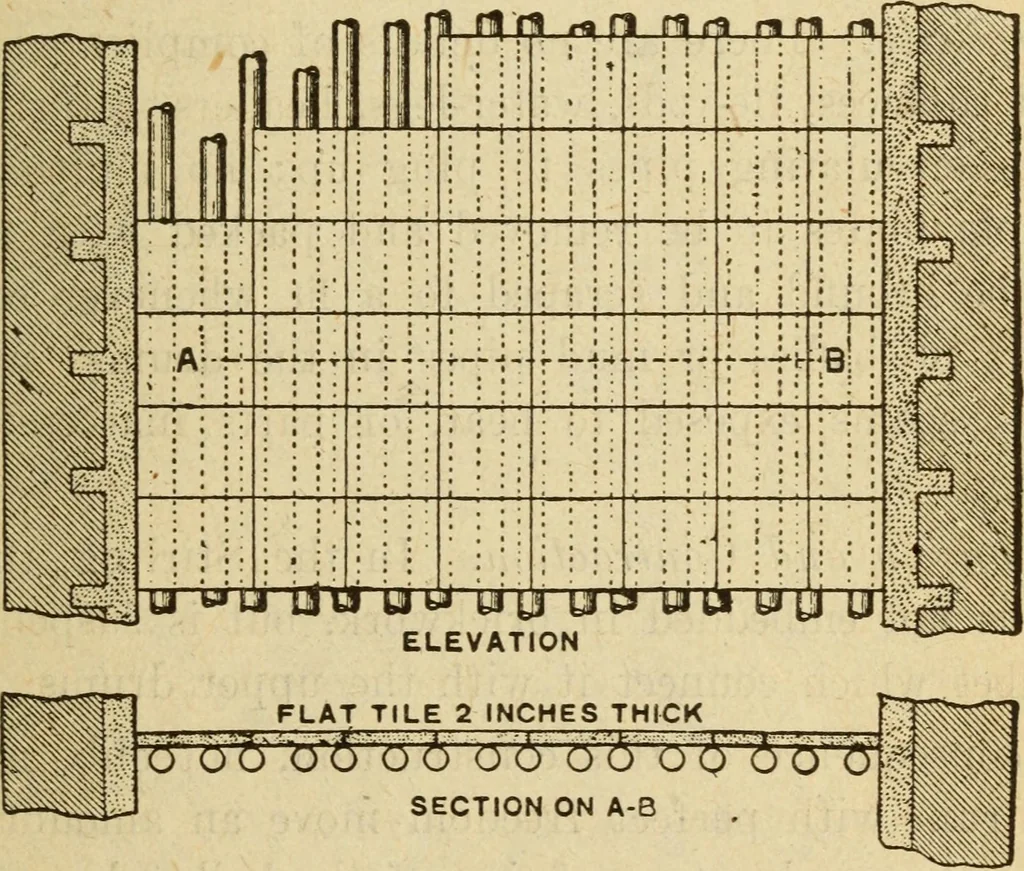

HE STIRLINQ INDEPENDENTLYFIRED SUPERHEATER. Stirling Water Tube Boiler 23 large triangular space between boiler fronts tubes and muddrum is available for a combustion chamber, and for instal-lation of sufficient grate surface to meet the requirementsof the lowest grades of fuel. Baffles and Course… … Fig. 13elevation and section of firetile baffles in stirling boilers boiler surface that the heat is quickly and thoroughly ex-tracted from them. In no other boiler are the gases com-pelled to travel as far before reaching the stack, and theeffect upon economy is evident. The baffles are made…
