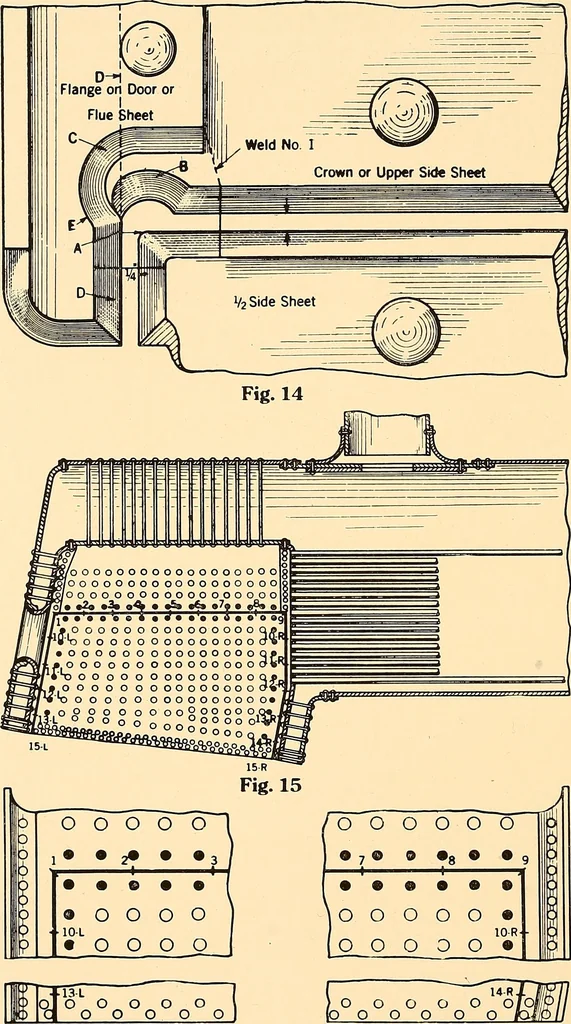

, the flanges of the door and flue sheet should be heated and raised, asshown in Figure 12, in order to allow the part of the joint under the flange to bebevelled. b: When new door and flue sheets are put on, the adjacent rivets A, Figure12, should be left out until the welding is done. c : Figure… … o o o o o • 10-R- - o o o o o • ^o0o°o0o°o [°o0o°o%^Sy Fig. 16 Page Twelve A AIRCO WELDING OFFULL-WELDED HALF SIDE SHEET FULL-WELDED HALF SIDE SHEET has no rivetted joints atthe top or sides, all three edges being welded. The work shouldbe performed as follows : Operation 1. Cut out the flange of…
