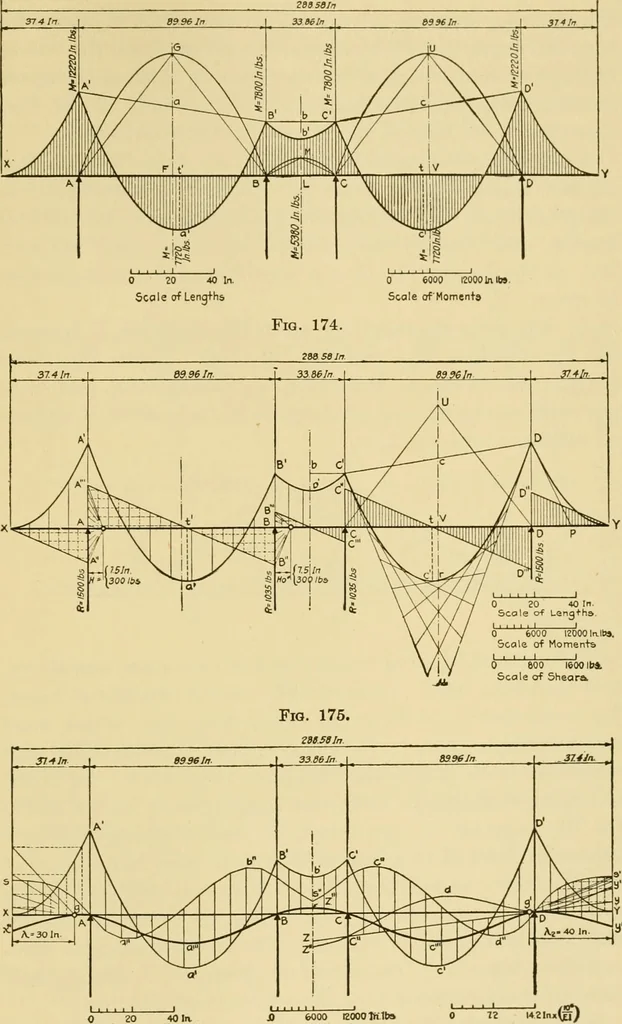

0 20 40 li Scale of Length; Fig. 173. On these figures, beside the unit loads which are alreadyknown, the scale of the moments, of the lengths and of theforces are also indicated. The preceding diagrams also give the bending moments. MAIN PLANES AND CONTROL SURFACES 287 … 0 12 I421nji(0) 6cal6 of Oeflec+iona FiQ. 176. 288 AIRPLANE DESIGN AND CONSTRUCTION the shearing stresses and the reactions on the supports forthe rear spars; in fact it suffices to multipl}^ both the valuesof the forces and those of the moments by 0.92, as the spansare the same, and the loads per…
