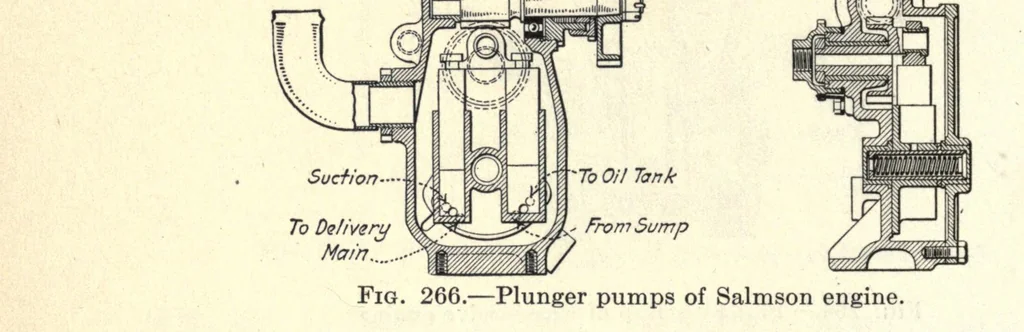

Fig. 265. An entirely different arrangement of plunger pumps is used in the Salmson engine (Fig. 266). In this case two plungers are used, the larger one being the scavenging pump. The plungers are pivoted on a crankpin rotated by worm gearing. The pump bodies are pivoted and oscillate through a… … FIG. 268.— Mounting of oil tank. in the pump casing. The method of action of a single pump of this type, used on the Le Rhone engine, is shown diagrammatically in Fig. 267. The port, P, in the oscillating cylinder comes alternately opposite the intake port, /, and the delivery port, D. The method…
