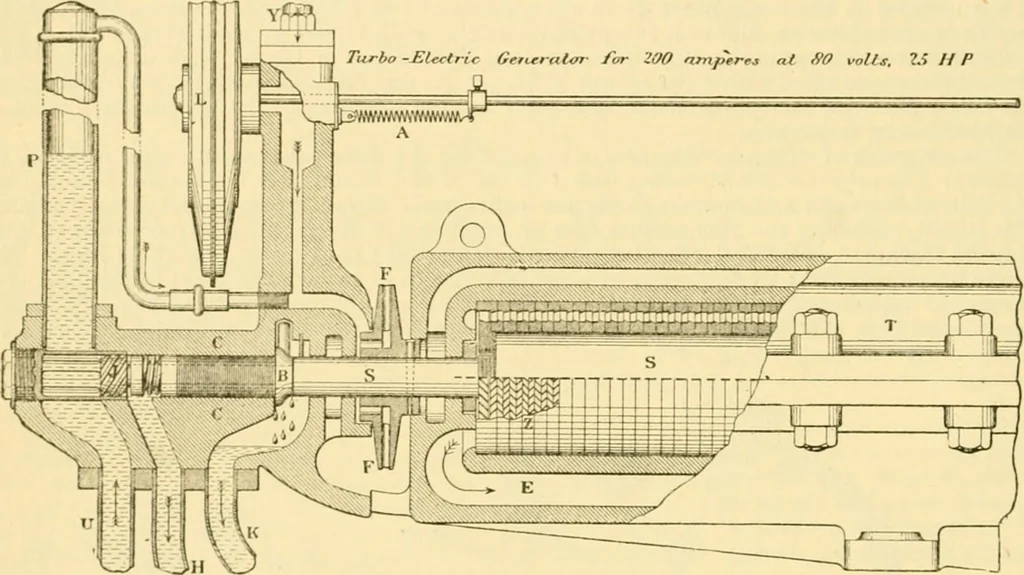

Fio. 10.—Par.soirs conipound steam turbine. fromithe central inlet /, Fig. 10, passes right and left through the whole oj each series of tur-bines to the exhaust U at each end. The steam expands as it loses pressure at each turbine.; Turbo -EUj-trir Genera tar- for 200 imjaerej a( m volts. IS H P … Fig. 11.—Compound steam turbine. and by successive steps the turbines are increased in size or area of passage-way, so as toaccommodate the increase of volume, and to maintain a suitable distribution of pressure and
