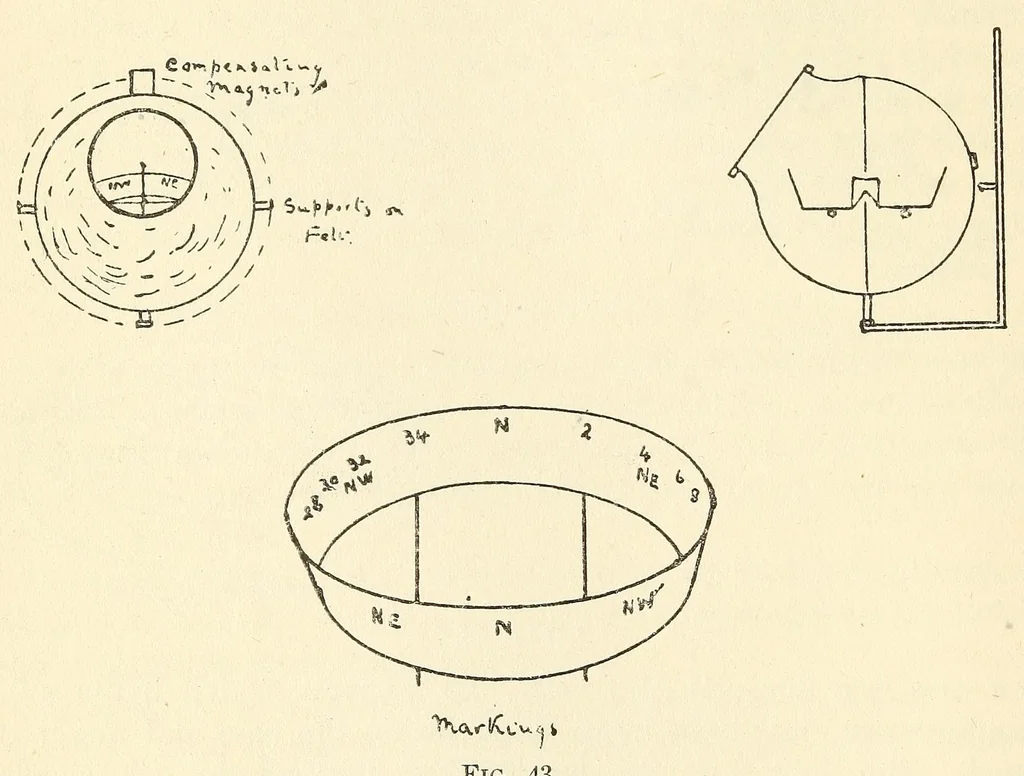

f a circular disk which is mounted on a pivot attached to the bottom of the bowl. This disk contains two magnets, and it is prevented from lifting off the pivot by a wire attached to the side of the bowl. Fixed into the disk are two wires at right angles which carry on their ends a ring on which… … Fig. 43. This compass has short and weak magnets so that the card has a long period of oscillation. The card of this compass is little affected when the airplane turns. C. The Creigh Osborne compass. — This compass consists of a spheri- cal bowl which has a window similar to that mentioned above.…
