Aladdin Manual of construction : containing practical methods covering every step necessary in the erection of Aladdin houses, barns, garages, etc. / prepared and illustrated by David S. Betcone (1918)
Betcone, David S, Aladdin Company · Bay City, Mich. : Aladdin Co. · leaf 126

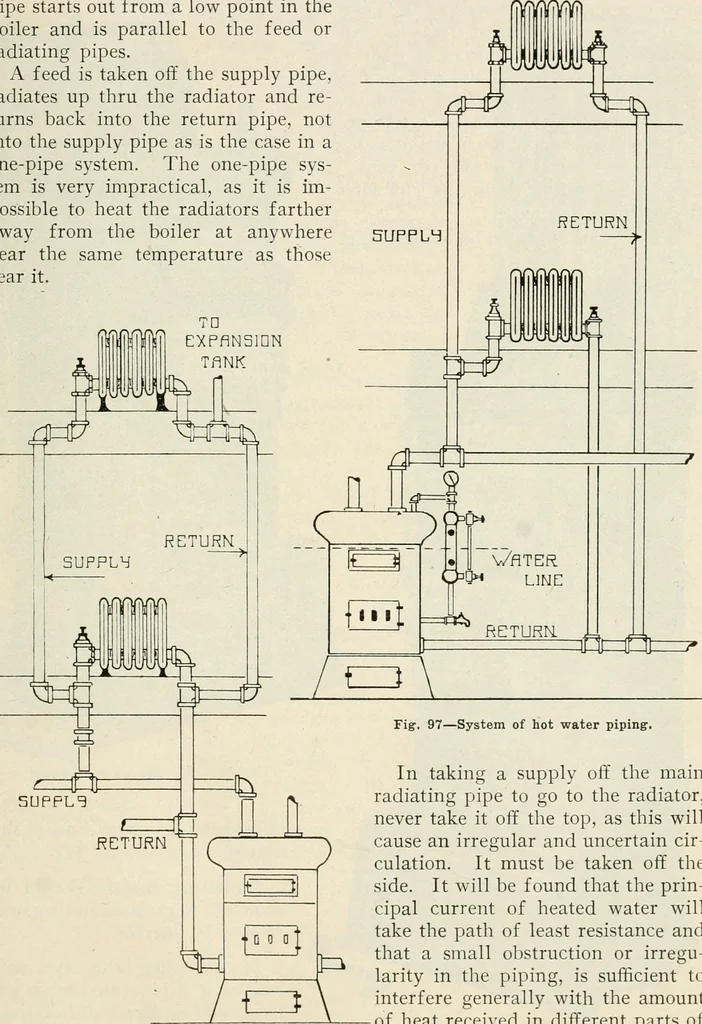

essfully used by us. By referring to Fig. 97, you will notice that the returnpipe starts out from a low point in theboiler and is parallel to the feed orradiating pipes. A feed is taken off the supply pipe,radiates up thru the radiator and re-turns back into the return pipe, notinto the supply pipe… … Fig. 98—Steam system of piping-. Fig-. 97—System of hot water piping. In taking a supply off the mainradiating pipe to go to the radiator,never take it off the top, as this willcause an irregular and uncertain cir-culation. It must be taken off theside. It will be found that the prin-cipal current…
