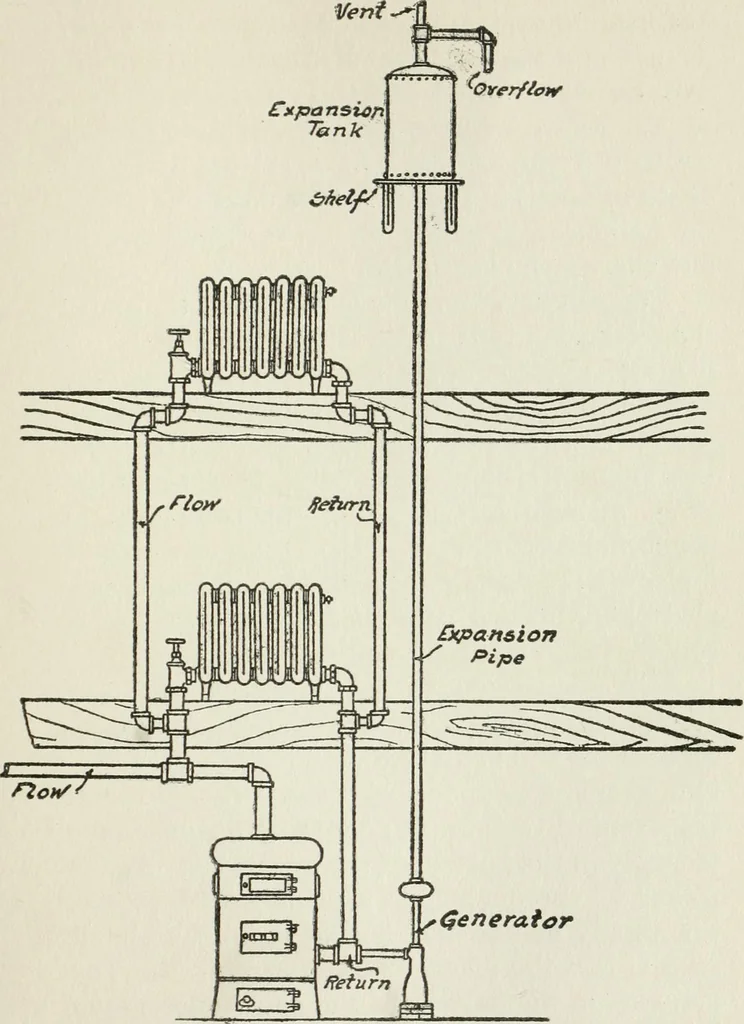

Fig. 62. Honeywell Generator Located Directly under Expansion Tank. B by the pipe C. This pipe extends almostto the bottom of the generator, terminat-ing in the cup-shaped shoe D. A smallerpipe E, curved at the bottom to fit into anorifice in the side of the shoe D, passes upthrough the center of… … Fig. 63. Honejnvell Generator Located in Basement and Connectedwith Return Pipe to Heater. 92 HEATING AND VENTILATION opening G, into which the expansion line fromthe heating system is connected. There is alsoa small opening at H which is sealed. The plughere can be removed, and the generator…
