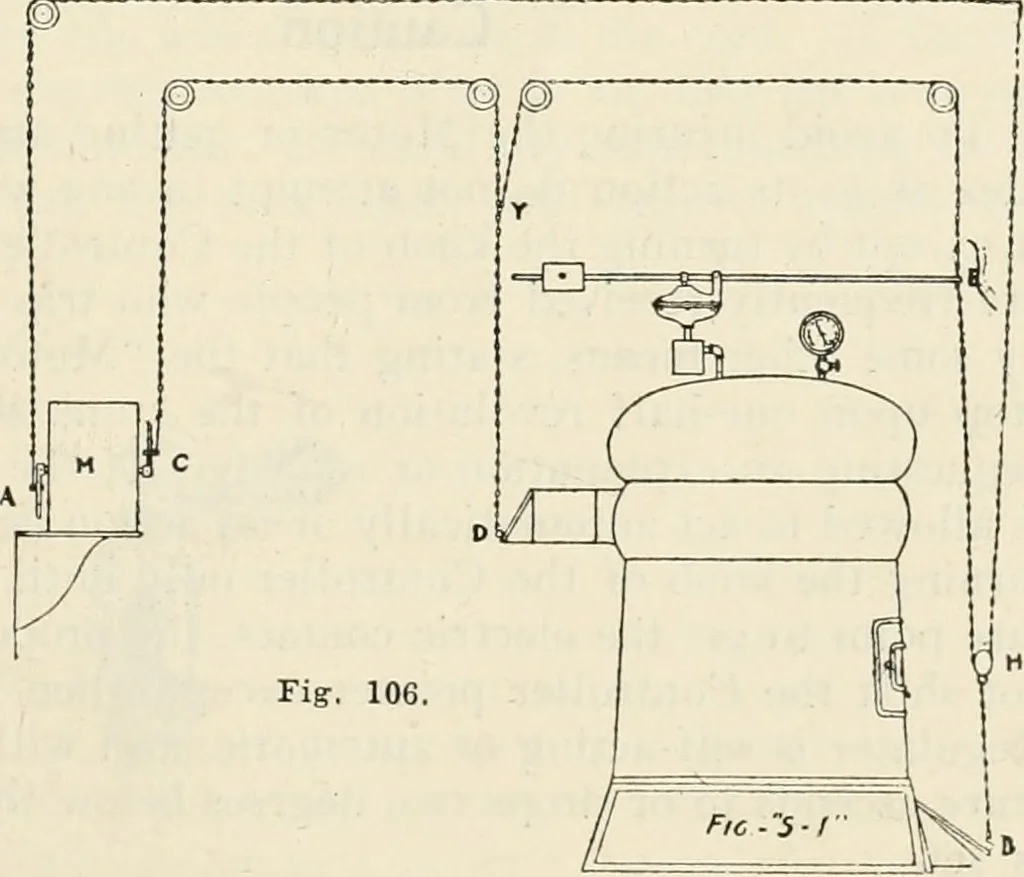

Steam Heaters in Conjunction with Diaphragms The best plan for connect-ing to house heating steamboiler is shown in Fig. 106.The letter H shows acommon awning pulley con-nected to top of piece ofchain from front draft B.Run chain from the motorcrank A over pulleys topulley H and throughsheaves up… … 136 ALADDIN MANUAL OF CONSTRUCTION another chain from end of diaphragm lever at E over pulley and connect atY. This arrangement enables the diaphragm and Controller to work inharmony producing the best possible results as follows: When the tempera-ture of the house rises above the desired degree…
