Aladdin Manual of construction : containing practical methods covering every step necessary in the erection of Aladdin houses, barns, garages, etc. / prepared and illustrated by David S. Betcone (1918)
Betcone, David S, Aladdin Company · Bay City, Mich. : Aladdin Co. · leaf 241

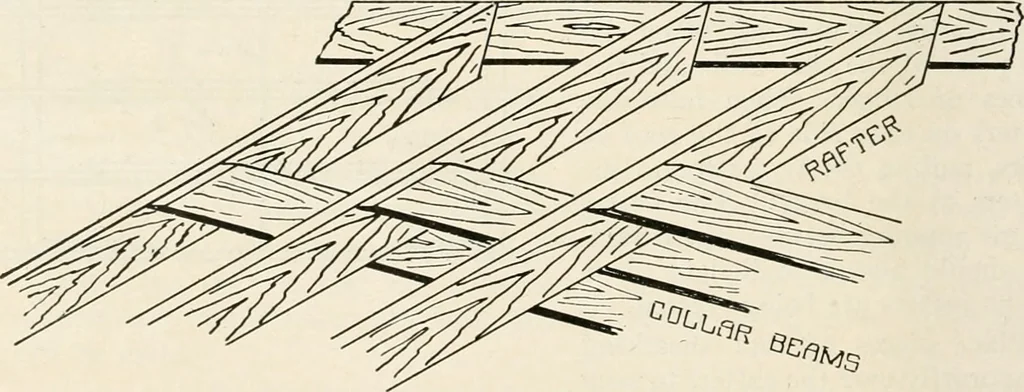

o Fig. 188which shows furring strips nailed to rafters and collar beams. Gable Studding and Sheathing In gable, four gable, shed and gambrel roofs there will be a certain num-ber of mitered studs in the gables of the buildings. These mitered studs youwill find tied together and marked with lengths… … Fi^. 189—Position of collar beams. In nailing the mitered studs in gables, always start in the center of theroof or ridge and work down toward end of rafters. This will prevent youfrom driving them in place too tight and springing rafters out of place. Youwill also find that the gable sheathing has…
