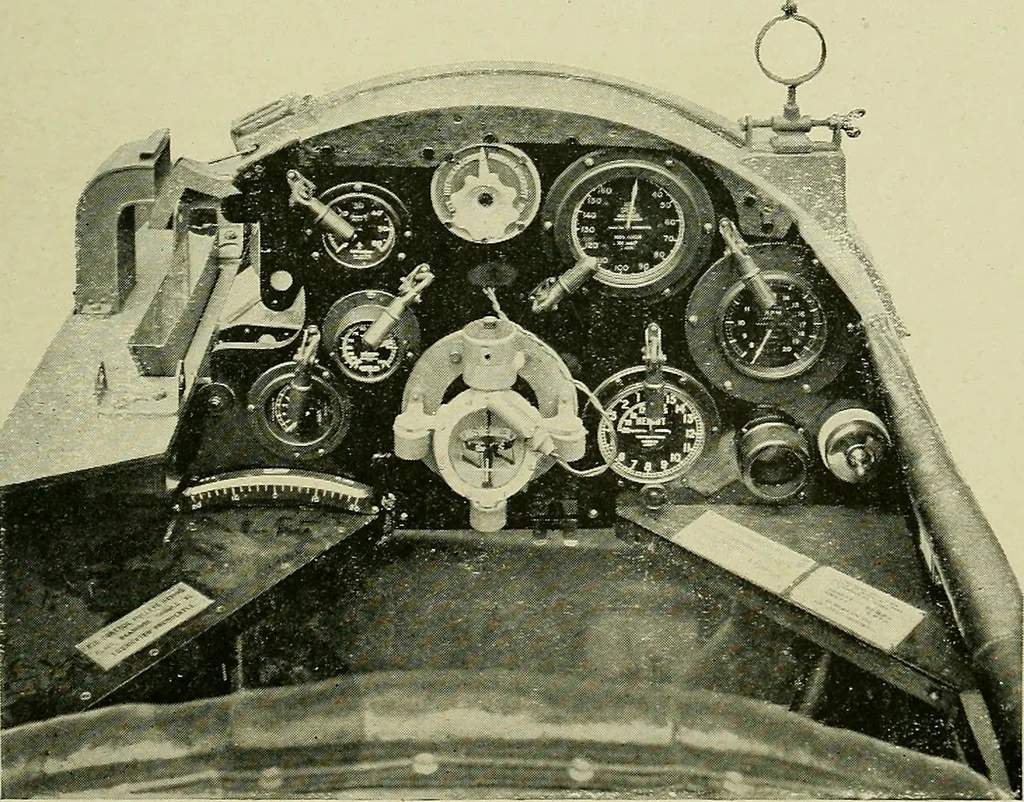

A simple dashboard carrying instruments indicating air-speed, temperatureof water in radiator, height indicator switches, and inclinometer. Thisillustration also shows the wheel mounted on joy-stick for control oflateral stability, the joy-stick itself being used solely for manipulation ofthe… … Dashboard of aeroplane, showing instruments for ascertaining height,-speed,engine revolutions, petrol and lubricating oil pressure, and inclinometer. Inthe centre is mounted the aviators compass, showing the compass card float-ing in alcohol in a sealed bowl. HOW THE AIRMAN FINDS HIS WAY IN THE AIR…
