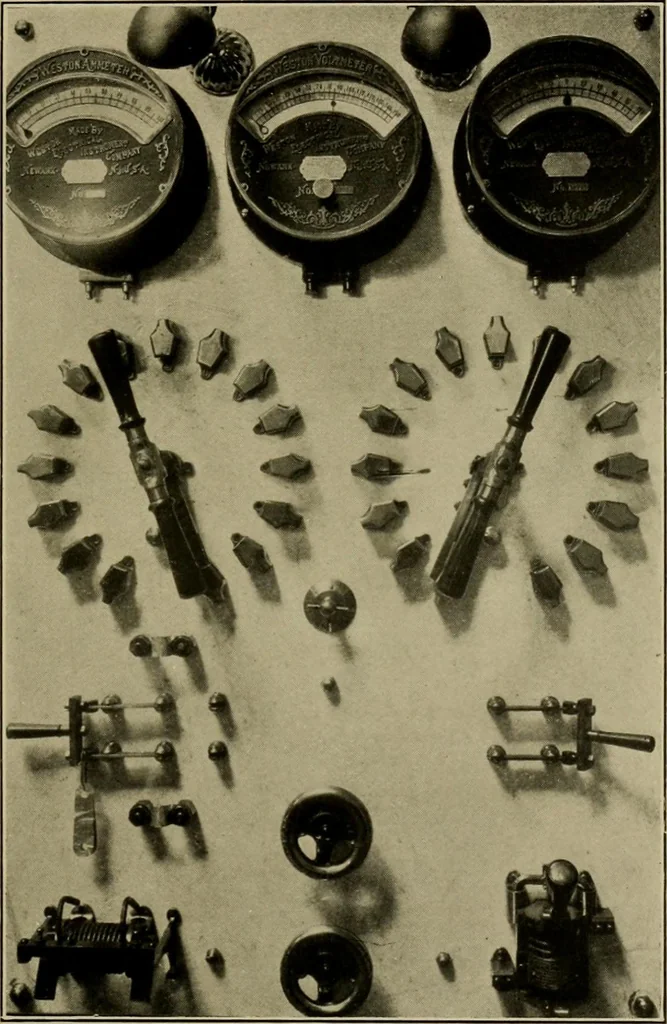

n to every dynamo, motor, and battery against overload andunderload. Measurements of C and V of any part desired and of leakage. The details of apparatus are given in figs. 79 and 80. The same api)aratus isindicated by symbols for other boards. The best switchboard arrangementto be found in forts… … 78. W=e Switch Board Front. 66 THE SWITCHBOARD. 57 3. 6-point voltmeter switch on battery panel connected to give at will thevoltage (a) between bus bars, (b) of first half battery, (c) of second half battery,(d) of whole battery, (e) between + bar and ground, (/) between — bar and ground;4-point…
