The American house-carpenter; a treatise on the art of building, and the strength of materials (1873)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 324

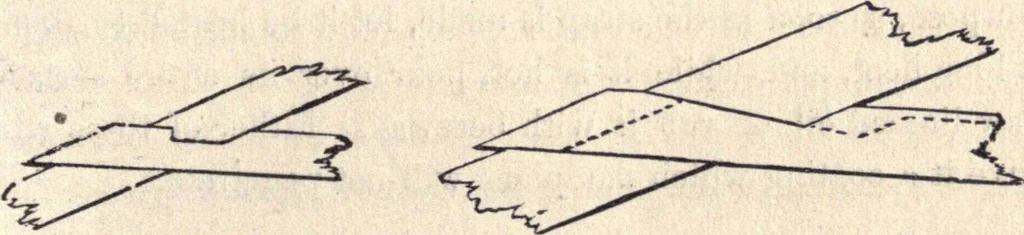

Fig. 2TL Fig. 2T2. Fig. 2T8. rope ; and, were its use adopted in this country, the unseemlysight of a hogged ridge would seldom be met with. A plateof cast iron between the abutting surfaces will equalize* thepressure. … Fig. 2T4 Fig. 275. 427.—Fig. 274 is a proper joint for a collar-beam in a smallroof: the principle shown here should characterize all tie-joints. The dovetail joint, although extensively practised inthe above and similar cases, is the very worst that can be em-ployed. The shrinking of the timber,…
