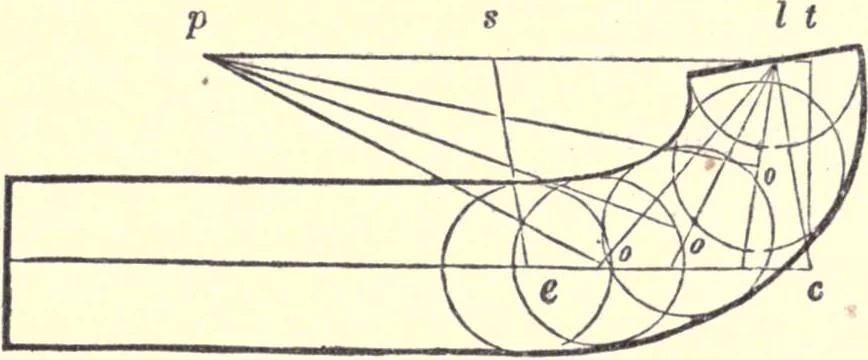

Fig 295. 462.—CASE 2 — When the cylinder is large. Ftp. 295 re- 840 AMERICAN HOUSE-CARPENTER, presents a plan and a vertical section of a line passing through thacentre of the rail as before. From b, draw b A;, parallel to c d ; ex-tend the lines, i d and j e, until they meet kbmk and/; from n,draw… … Fig. 296. draw c t, at right angles to e c, and equal to c / at Fig. 295 • fromt, draw t p, parallel to c e, and make 11 equal to 11 at Fig. 295 ;complete the parallelogram, eels, and find the points, o, o, o, asbefore; then describe the circles and complete the mould as inFig. 293 The difference…
