The American house-carpenter; a treatise on the art of building, and the strength of materials (1873)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 365

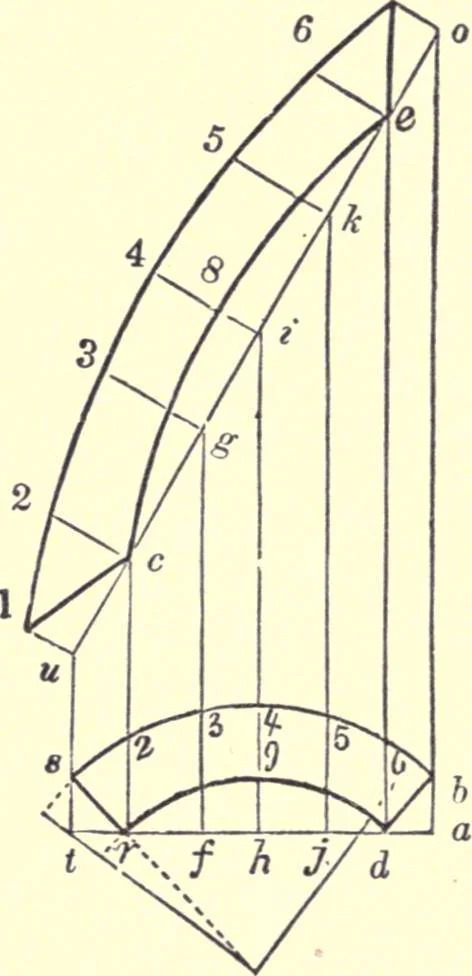

the direction of the butt-joint.From k, draw k b, parallel to I o, and k e, at right angles to k b :from 6, draw b /, tending to the centre of the plan, and from/, draw/ e, parallel to b k ; from /, through 6 draw I i, and from«, draw id, parallel to ef; join d and b, and d b will be the proper… … Fig. 307. Having obtained the direction of the joint, make s r d b, (Fig.307,) equal to s r d 62 in Fig. 305 ; through r and </, draw t a ethrough 6- and from d, draw t u and d e, at right angles to / a ,make t u and d e equal to t u and 6* m, respectively, in Fig. 305 ;from u, through e, draw u…
Carpentry · Architecture
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
