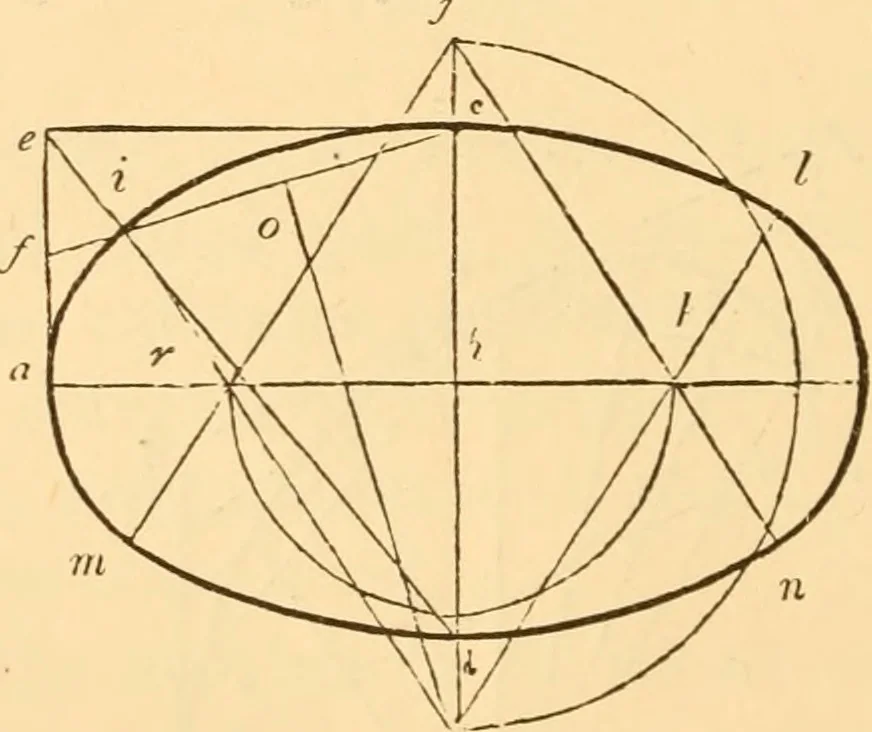

radius, describe arcs intersecting- the others at g,g,g, and^;then these points of intersection will be in the curve of theellipsis. The other points, Ji and /, are found in like manner,viz.: h is found by taking b2 for one radius, and a2 for theother; i is found by taking b 3 for one radius, and a… … Fig. 411. Other, always using the foci for centres. Then by tracing acurve through the points c, g, h, i, b, etc., the ellipse will becompleted. This problem is founded upon the same principle as thatof the string. This is obvious, when we reflect that thelength of the string is equal to the…
