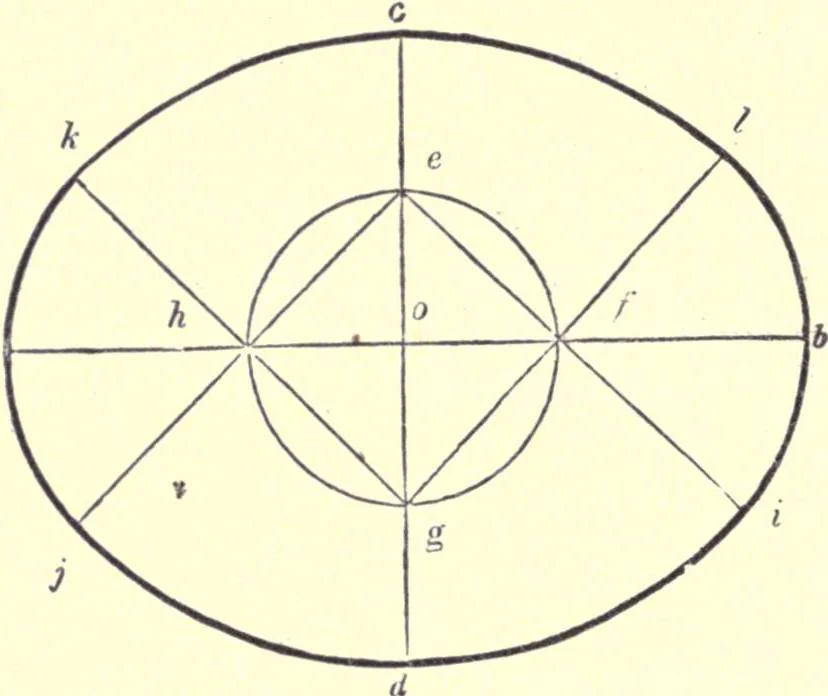

Fig. 87. 121.— To draw an oval in the proportion, seven by nine.Let c rf, (Fig. 87,) be the given conjugate axis. Bisect c d in o,and through o, draw a 6, at right angles to c d ; bisect c o in e ,upon o, with o e for radius, describe the circle, e f g h ; from e,through h and/, draw e j and e i ;…
