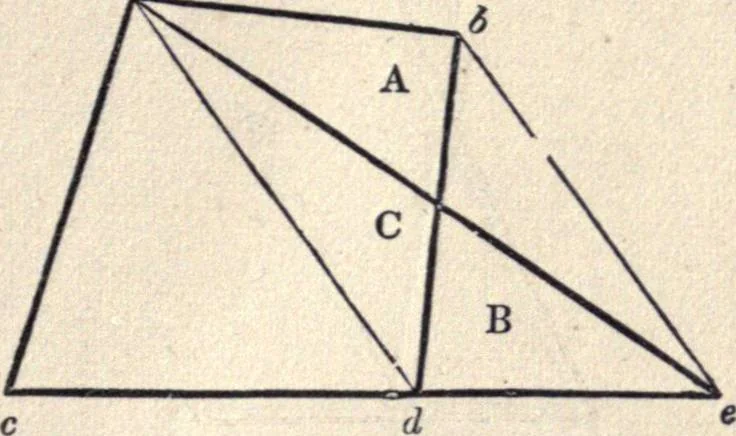

parallels, the parallelo-gram will be equal to double the triangle. Thus, the paral-lelogram, a d, (Fig. 103,) is double, (Art. 143,) the triangle,ced. 147.—Proposition. Let abed, (Fig. 104,) be a given quad-rangle with the diagonal, a d. From b, draw b e, parallel to a d,extend cdtoe ; join a and… … Fig. 104. lels, a d and b e, they are therefore equal, (Art. 145, 146 ;} andsince the triangle, C, is common to both, the remaining triangles, Aand B, are therefore equal; then B being equal to A, the triangle,a e c, is equal to the quadrangle, abed. Fig. 105. 148.—Proposition. If two straight…
