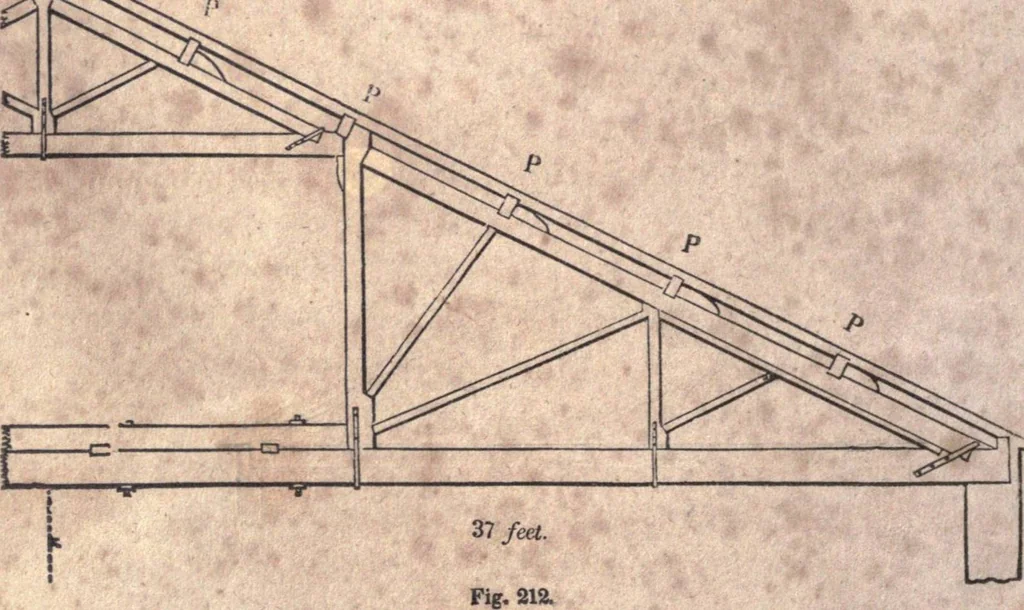

FRAMING. 163 after; R is a principal rafter ; k is a king-post; s is a strut; &,(Fig. 211,) is a straining-beam ; Q is a queen-post; T is a tie-beam ; and P, P, (Fig. 212,) are purlins. In constructing a roofof importance, the trusses should be placed not over 10 feet apart,the principal rafter…
