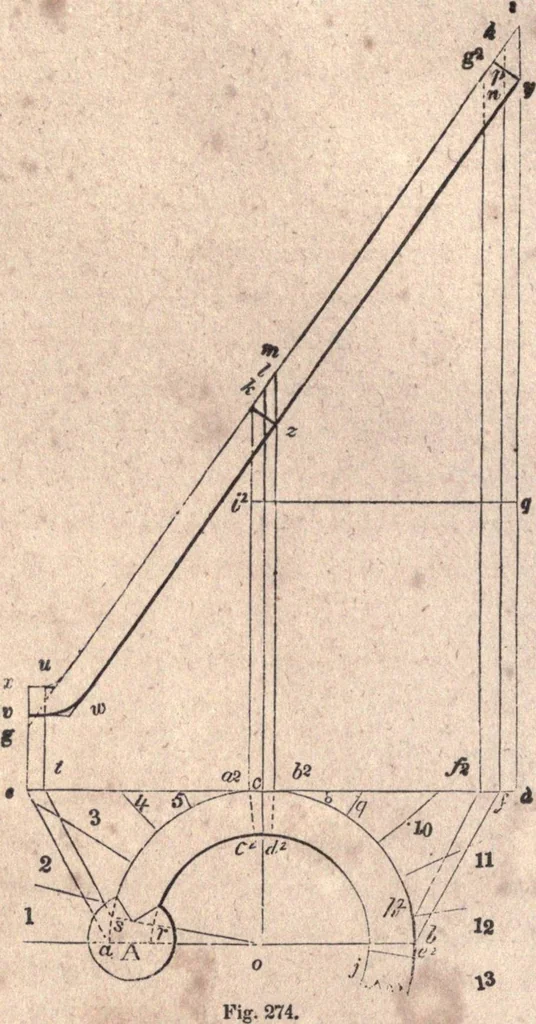

the angle at u ; at a distance equal to the thickness of * In the above, the references, a2, 62, &c., are introduced for the first time. During thetime taken to refer to the figure, the memory of the/orm of these may pass from the mind,while that of the sound alone remains ; they may then be… … the rail, draw v w y, parallel to x u i ; from the centre of the plan,o, draw o Z, at right angles to e d; bisect h n in p, and through/>,. at right angles to^ i, draw a line for the joint; in the srimemanner, draw the joint at k ; then x y will be the falling-mouldfor that part of the rail…
