The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)

Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 240

An illustration from The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry, 1852, leaf 240

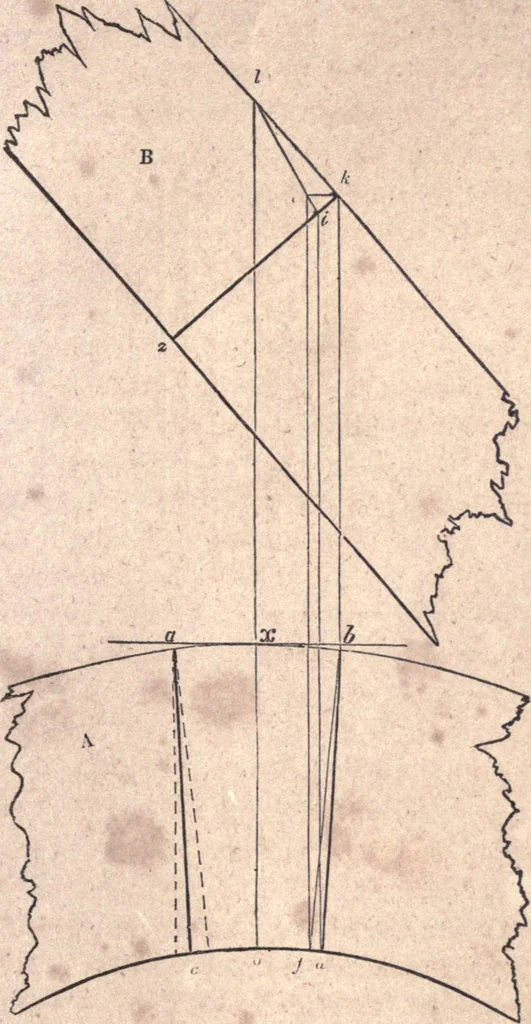

a line for the joint; in the srimemanner, draw the joint at k ; then x y will be the falling-mouldfor that part of the rail which extends from s to b on the plan. 380.— To find the face-mould for the rail of a winding-stairs.From the extremities of the joints in the falling-mould, as /.-. :ald y,… … Fig. 275. shown at half their full size. A is the plan of the rail, and B isthe falling-mould : in which k z is the direction of the butt-joint.From k, draw k 6, parallel to I o, and k e, at right angles to k b;from 6, draw b /, tending to the centre of the plan, and from/, draw/ e. parallel to b k…
