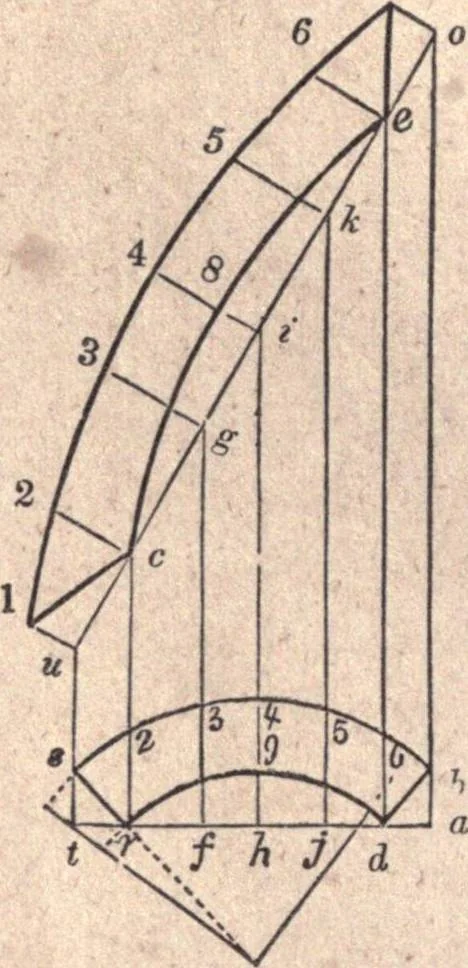

tion of the butt-joint.From k, draw k 6, parallel to I o, and k e, at right angles to k b;from 6, draw b /, tending to the centre of the plan, and from/, draw/ e. parallel to b k ; from I, through e, draw I i, and from i, draw trf, parallel to e/; join d and 6, and d b will be the proper direction… … Fur. 27(5. Having obtained the direction of the joint, make s r d 6, (Fig.276,) equal to s r & tf in JFio-. 274 ; through r and rf, draw t a ;through s and from d, draw £ u and eZ e, at right angles to t a;make t u and d e equal to £ u and 62 wr, respectively, in Fig. 274 ;from u, through e,…
