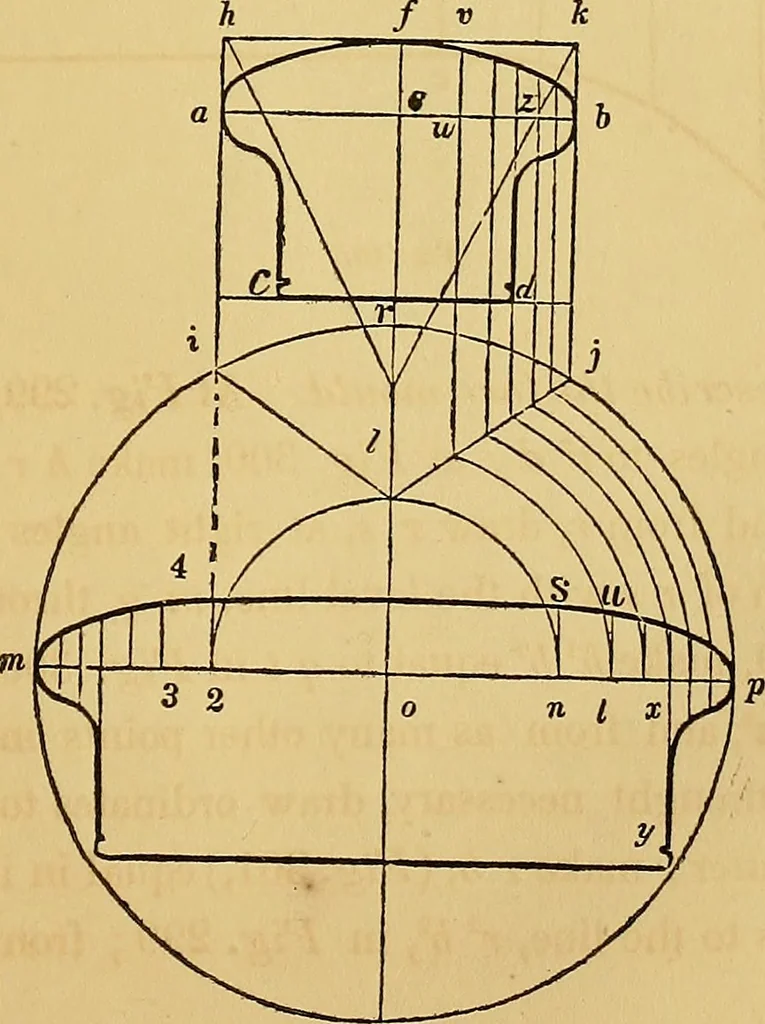

ding face-mouldsover winders, are intended for moulded rails. For round rails,the same process is to be followed with this difference: insteadof working from the sides of the rail, work from a centre-line.After finding the projection of that line upon the upper plane,describe circles upon it, as at… … ffs. 30S. ^04 AMERICAN HOtrSErCARPENTEK. 404.—To ascertain the form of the newel-cap from a seetionof the rail. Draw a b, {Fig. 302,) through the widest part ofthe given section, and parallel to c c?; bisect a bin e, and througha, ^ and b. draw hi,fg and kj, at right angles to a 6 ; at a…
