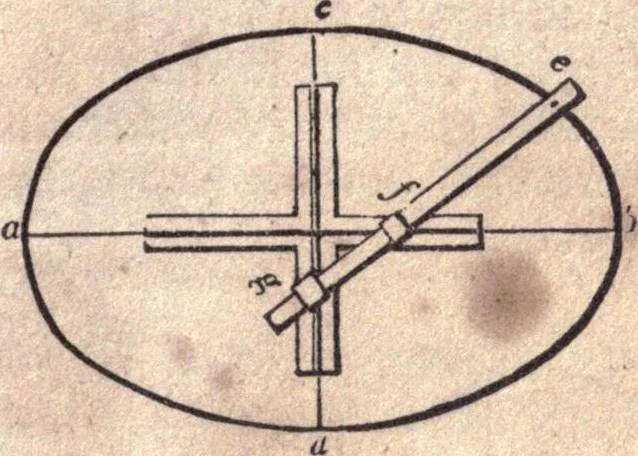

s, fg and g /, show theposition of the string when the pencil arrives at g. This method, when performed correctly, is perfectly accurate;but the string is liable to stretch, and is, therefore, not so good touse as the trammel. In making an ellipse by a string or twine,that kind should be used which… … Fie. 81 116.— The axes being given, to describe an ellipsis unth atrammel. Let a b and c d, (Fig. 81,) be the given axes. Placethe trammel so that a line passing through the centre of thegrooves, would coincide with the axes ; make the distance fromthe pencil, e, to the nut,/, equal to half c d ;…
