The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 97

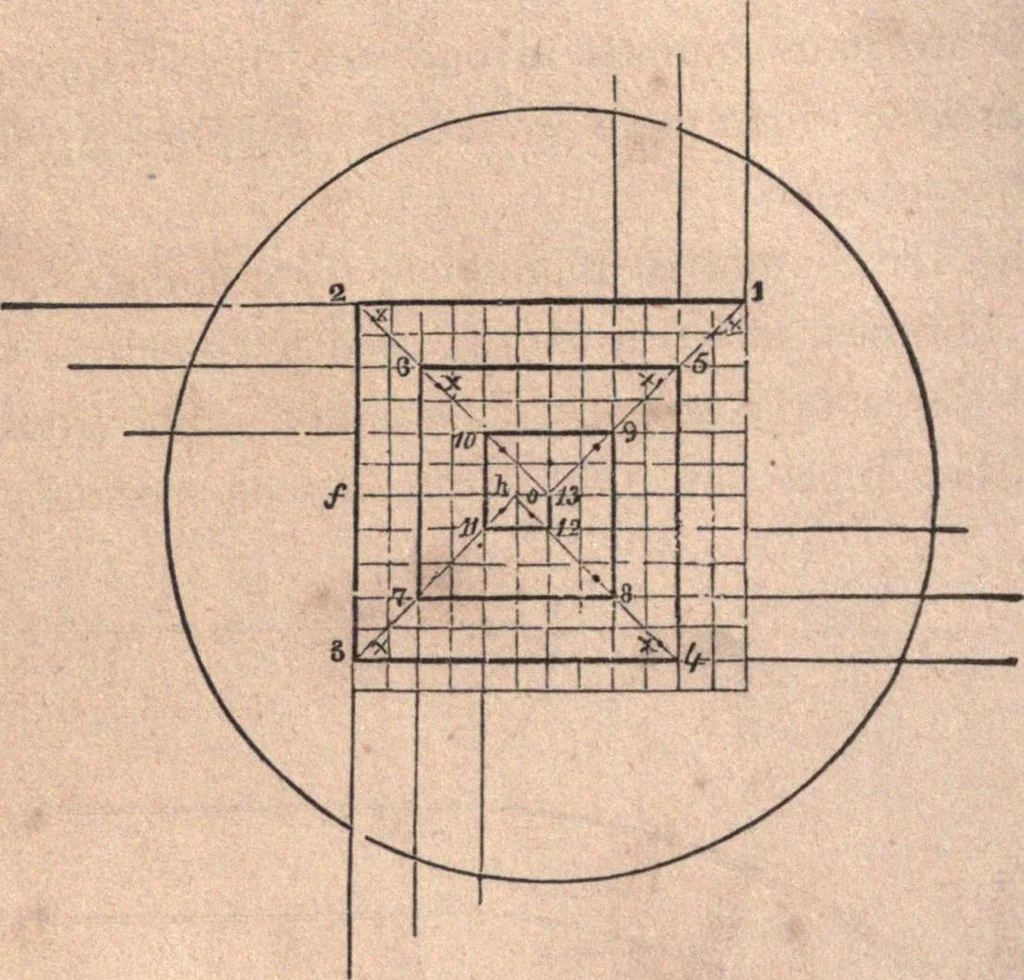

AMERICAN HOUSE-CARPENTER. … Fig. 113. 195.— To describe the Ionic volute. Draw a perpendicularfrom a to s, (Fig. 112,) and make a s equal to 20 min. or to f ofthe whole height, a c; draw 5 o, at right angles to 5 a, and equalto 1| min.; upon o, with 2., min. for radius, describe the eye ofthe volute; ab;>i;t o, the centre…
