The American house-carpenter; a treatise on the art of building, and the strength of materials (1873)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 110

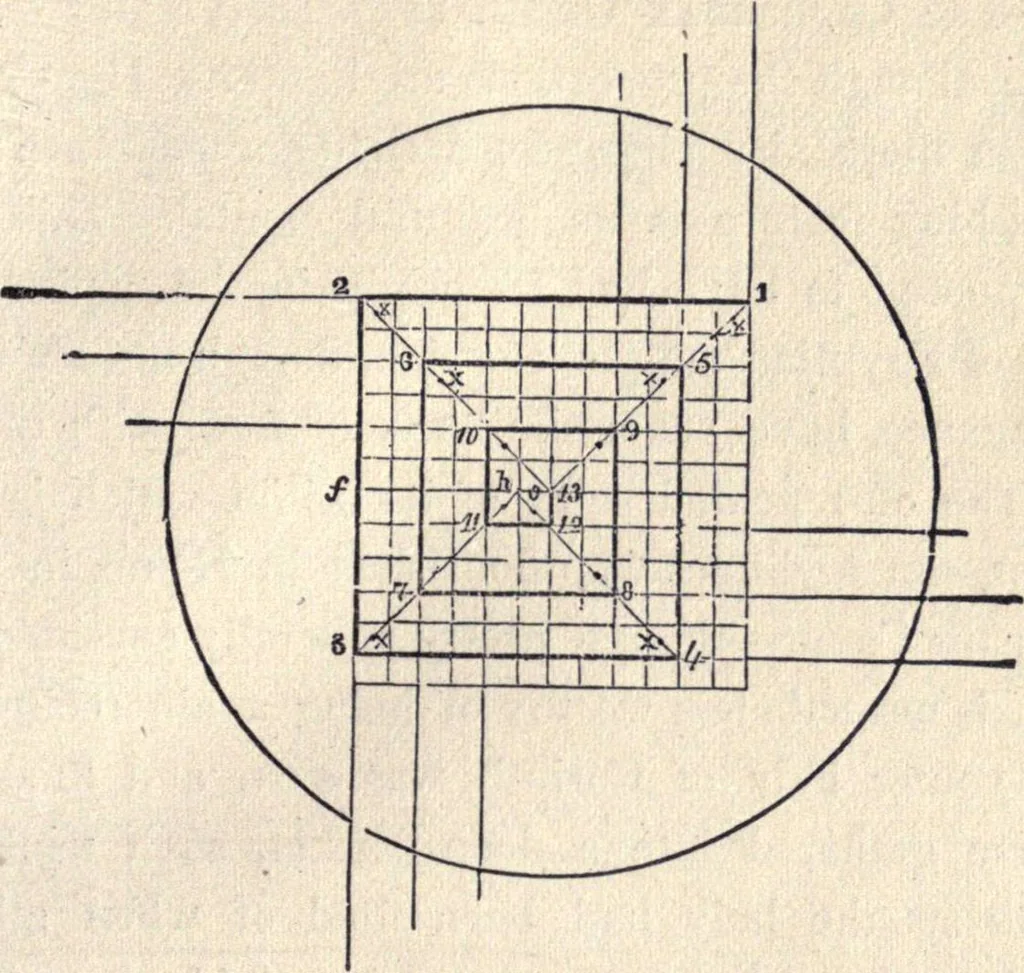

AMERICAN HOUSE-CARPENTER. … Fig. 123. at Fig. 123. The several centres in rotation are at the anglesformed by the heavy lines, as figured, 1, 2, 3, 4, 5, 6, &c. Theposition of these angles is determined by commencing at thepoint, 1, and making each heavy line one part less in lengththan the preceding one. No. 1 is the…
Carpentry · Architecture
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
