The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)
Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 224

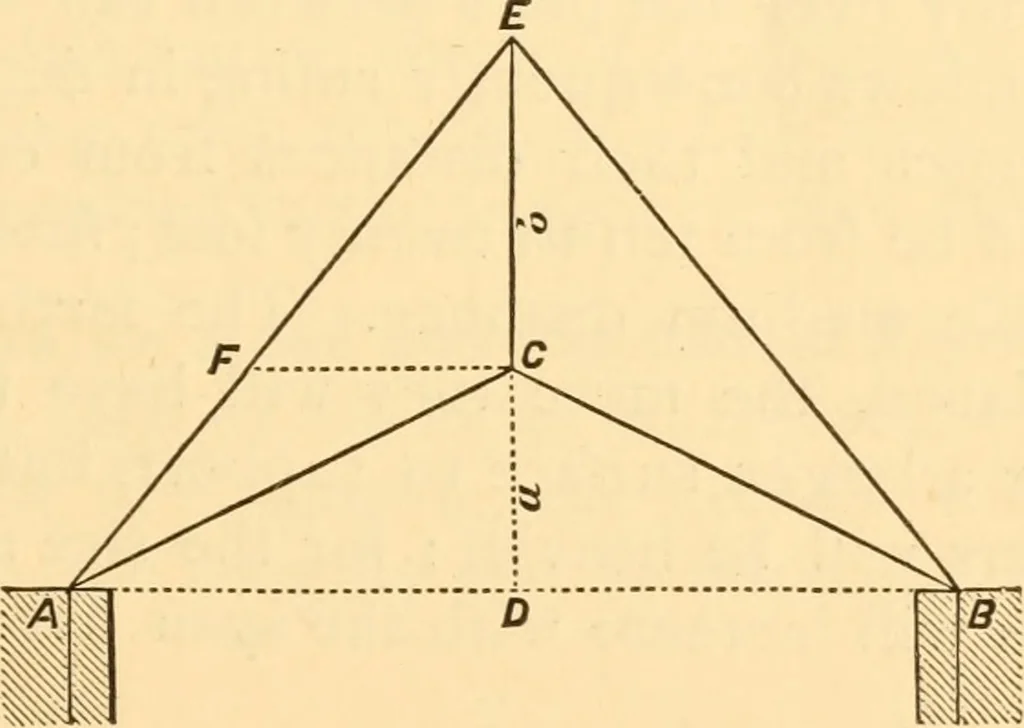

Fig. 81. 212.—Roof-Trus§: Effect of Elevating the Tie-Beam.— From Arts. 670, 671, Transverse Strains^ it appears that the … Fig. 82 effect of substituting inclined ties for the horizontal tie atfeet of rafters is— 188 CONSTRUCTION. F=P| (91.) in which P represents half the weight of the whole truss andthe load upon it; a + b — height of the truss at middle abovea horizontal line drawn at the feet of the rafters; a…
