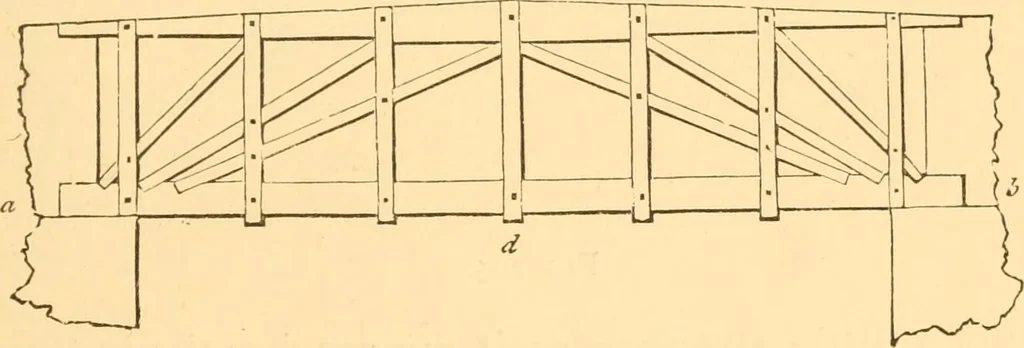

the lineef. From i, 2, 3, etc., in the arc CD draw ordinates, paral-lel to A D, to meet fG; from the points of intersection onfG draw ordinates at right angles to f G \ make ^ i equalto 0 I, s 2 equal to 0 2, etc.; then GfB, obtained in this way,will be the angle-rib required. The best position for… … Fig. 103 242.—Bridges.—Of plans for the construction of bridges,perhaps the following are the most useful. Fig. 103 shows amethod of constructing wooden bridges where the banksof the river are high enough to permit the use of the tie-beam, ab. The upright pieces, c d, are notched and boltedon in…
