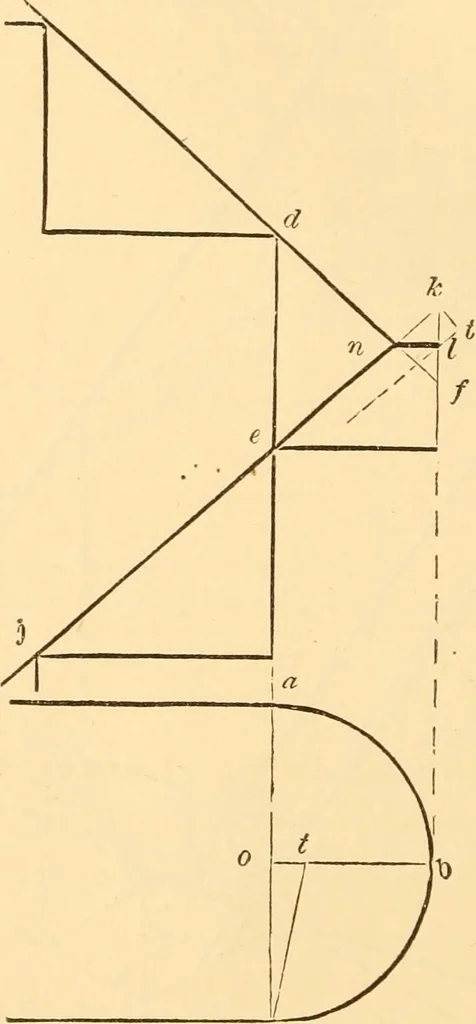

centre of it. Assuming that the rake of 270 STAIRS. the second flight is the same as that of the first, as is gener-ally the case, the face-mould for the lower twist will, whenreversed, do for the upper flight; that part of the rail, there-fore, which passes from c to <:, and from c to /, is all… … Fig. 147. plane eaoch^ revolved on ^^ as an axis, in the manner indi-cated by the arcs on and ax, until it coincides with theplane ertc\ the line ao will then be represented by the finexn ; then add.the parallelogram xrtn, and the triangle ctl,deducting the triangle ers\ then the edges of the plane…
