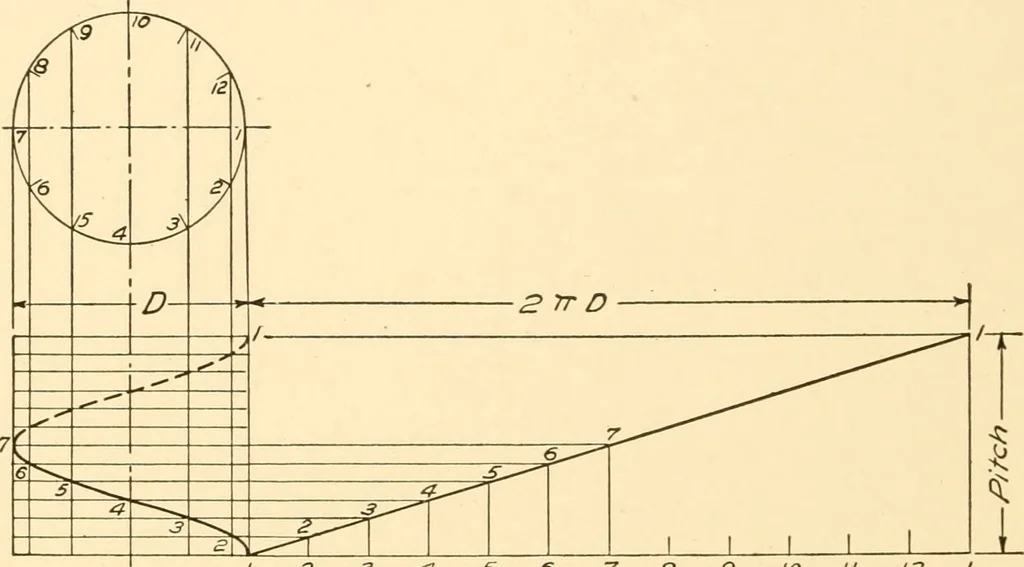

Threads. — A screw is a cylindrical bar havinga helical projection. The form of this helical projection varies,according to the uses to which the screw is put. Screws areused for the following purposes: To fasten parts of machinestogether; to transmit motion; to convert rotation into transla-tion,… … 2 3 ^ S 6 7 a 9 10 II la I f/g. 60 distances around the cylinder. If a right triangle is woundaround a cylinder the hypotenuse will form a helix. The points1, 2, 3, 4, etc., of Fig. 80 will come at the same numbers on thecurve when the triangle is wound around the cylinder. Thepitch of a helix is…
