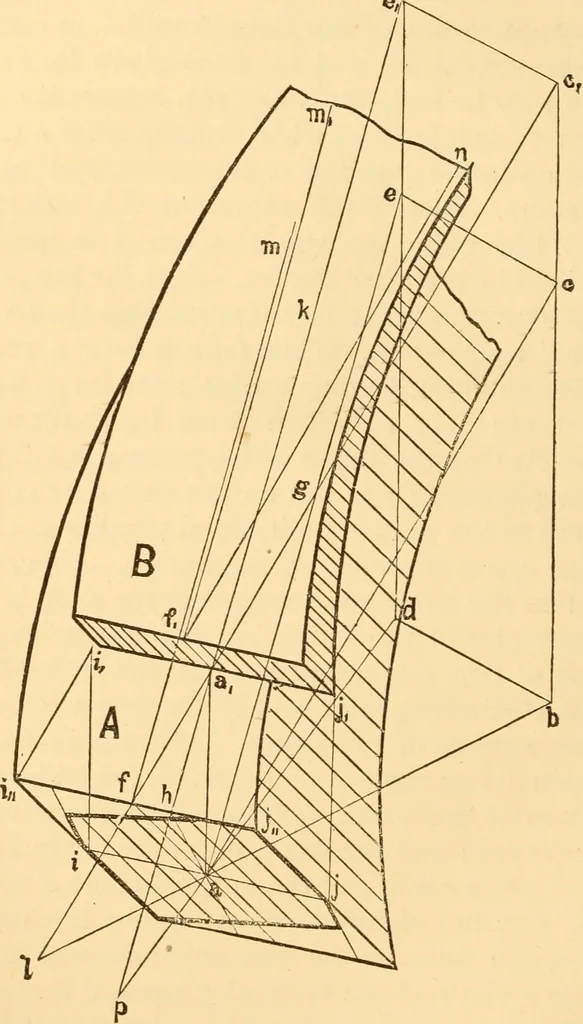

its true position at the middle of the thickness of theplank. From a the line a c is. drawn parallel with a^ c^; so,also, the line ^ ^ is drawn parallel with a^ c^ ; consequentlythe line ^ <; is parallel with e^ c^; and the plane e c a\^ parallel 298 STAIRS. with the plane c^ c^ a,, and… … Fig. i6- face-mould. When the face-mould is first laid upon the plank,the line i^j\ coincides with i^^ j\^, and when in that position,its form marked upon the plank is the form by which theplank is sawed square through ; but this gives the form of THE SLIDING OF THE FACE-MOULD. 299 the wreath, not…
