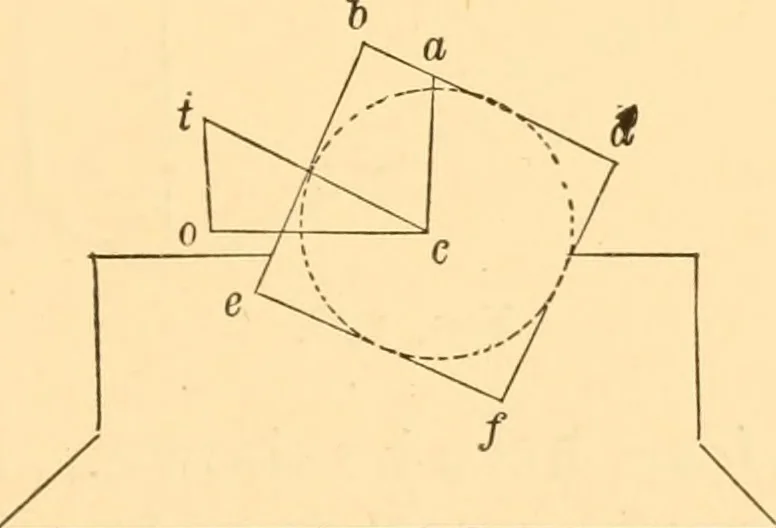

essary parallel to f g; from the points at which theseordinates meet the line I j\ and upon the centre, 0, describearcs in continuation to meet op ; from n t x, etc., draw n s, tii^etc., parallel to f g\ make n s, t u, etc., equal to ef, wv, etc.;make xy, etc., equal to -c d, etc.; make ^ 2, ^ 3,… … Fig. 177. 296.—Borings for Balu§ters in a Round Rail before itis Rounded.—Make the angle o c t {Fig. 177) equal to theangle 0 c t ?it Fig. 144; upon c describe a circle with aradius equal to half the thickness of the rail; draw the tan-gent b d parallel to / <r, and complete the rectangle e b d…
