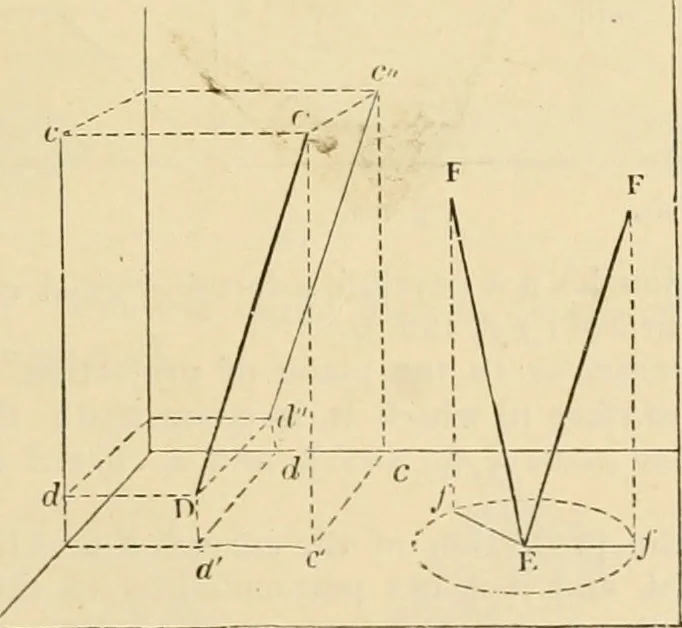

e plane of projection. a mere point marks it because it coincides in the length with the perpendiculars ofprojection. VI. That the measure of the obliquity of an arris or edge will be found by verticalslet fall from its extremities. 1129. In conducting all the operations relative to projections,… … A- ^IK iy-^^ 1 / 1 ,-■« [ / ol F^K. 4.;i. Vig. 4.-)2. pressed on such plane by a point K, and by the lines ah, ah, equal to the original on ver-tical planes, whatever their direction. 11:31. An inclined line CD (_/?//. 400.) is represented on an horizontal or a vertical planeby cd, cd, shorter than…
