The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)
Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 374

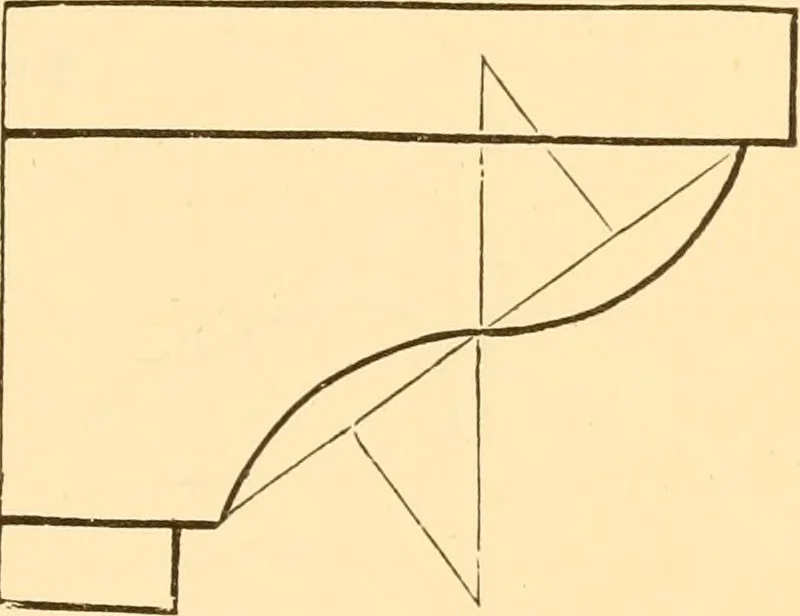

Fig. 219. with b d for radius, describe the arc d f\ divide this arcinto 7 equal parts, and set one of the parts from s, the limitof the projection, to 0 ; make 0h equal to 0 e\ from //, throughc, draw the tangent h i; divide bh, lie, c i, and ia each intoa like number of equal parts, and draw the…
