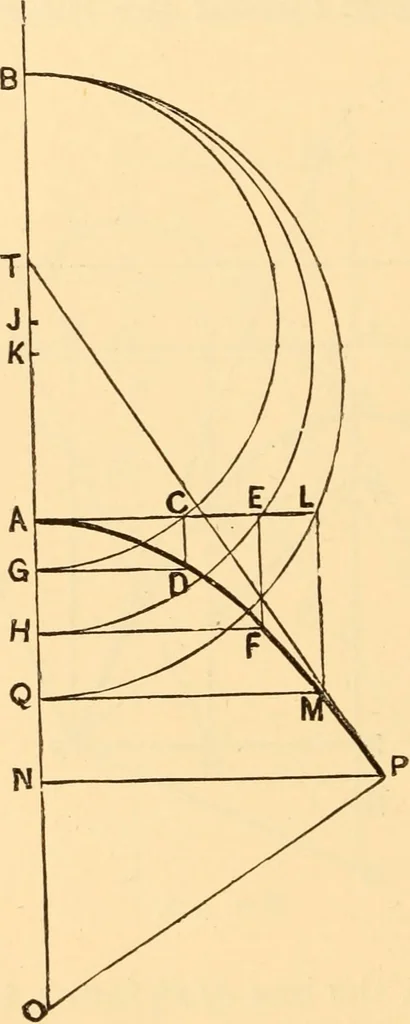

encil, as at K, against the cord. Thus held, as thesquare is moved the pencil will describe the curve. Thatthis operation will produce the true curve we have but to 502 THE PARABOLA. consider that at all points the line FK will equal KJ, whichis the law of the curve (Art. 460). 468.—Parabola :… … Fig. 309. PO; make A B equal to twice N 0\ take G, any point in theaxis A O, and bisect B G in J \ on y as a centre describe thesemi-circle B CG cutting A Z, a perpendicular to B O in C;on A C and A G complete the, rectangle A CD G. Then D isa point in the curve. Take H, another point in the…
