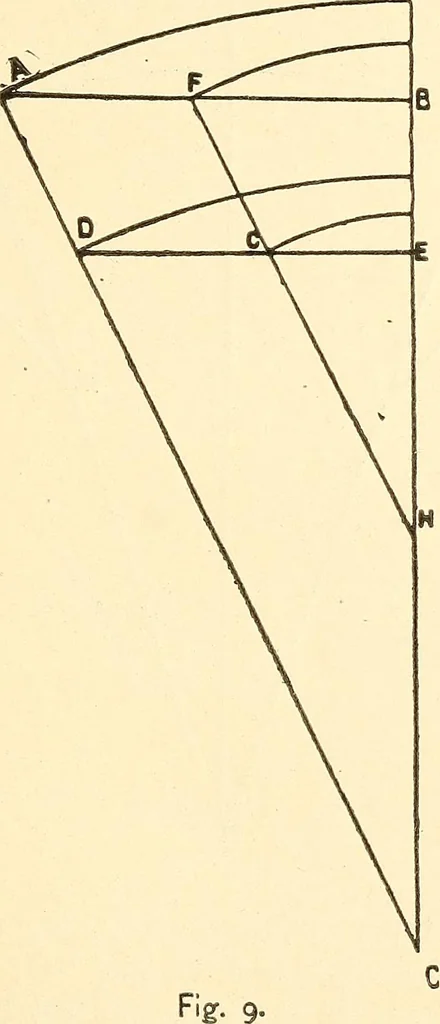

OVAL. 7 To describe a Pattern for a Tapering Oval Article^ to bein Two Sections.—Describe the bottom, the length andbreadth required as in Fig. 8 ; then describe the body as inFigs. 9 and lo. Describe the right angle ABC, Fig. 9 ; make BE the alti- … tude, draw the line DE at right angle to BC; make DEequal to AB in Fig. 8 ; make AB equal to DE and the taperrequired on a side, draw a line cutting the points A and D,and the line BC. On any right line, as AB in Fig. 10, with the radii CEand CL, describe the arcs EF and CD; set off EF equal 8 TIN,…
