The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)
Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 644

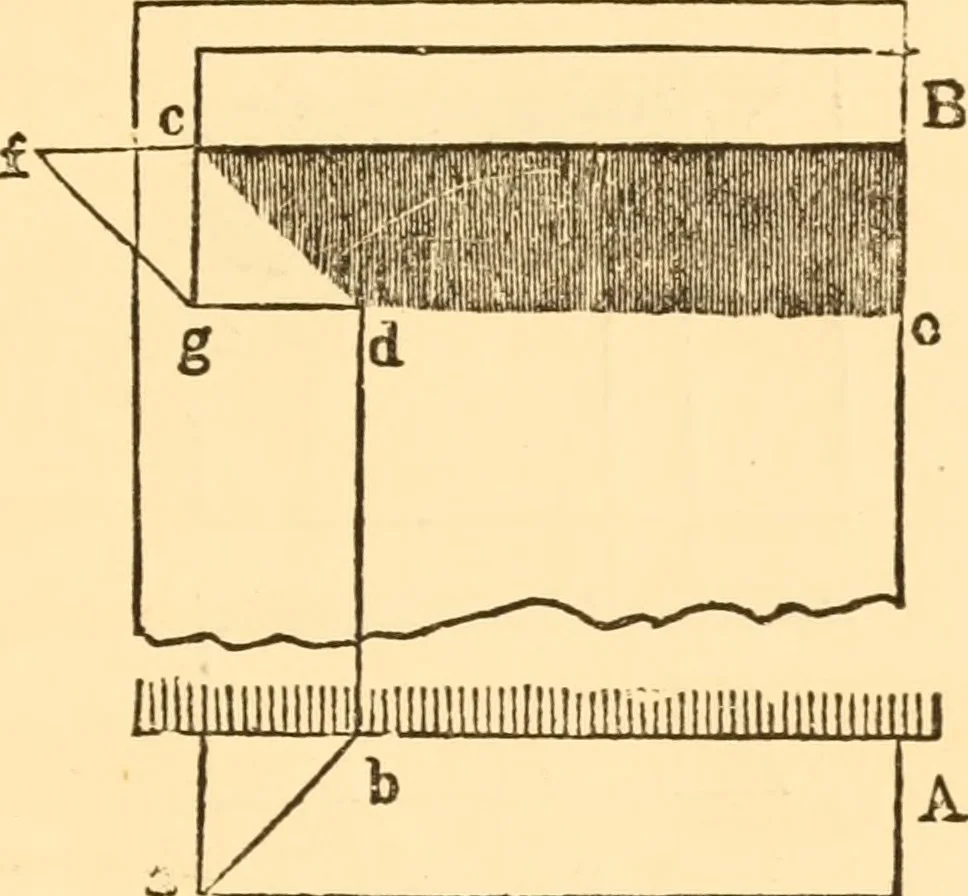

e projection of the shelffrom the w^all; from/draw/^ at the customary angle, andfrom c drop the vertical line eg intersecting fg^tg-, fromg draw ge parallel to the shelf, and from c draw c d Tit theusual angle; then the lines cd and dc will determine theextent of the shadow as before. SHADOWS OF… … FiG. 425. vious example, and from any other point in the front of theshelf, as a^ erect the perpendicular <7;^; from a and e draw^Zand e c, at the proper angle, and from b erect the perpendicu-
