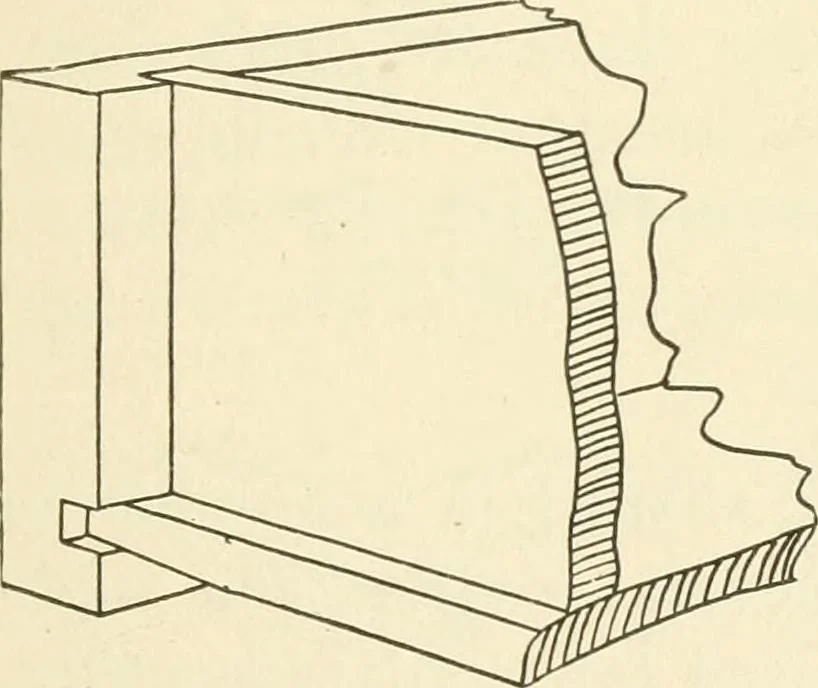

and cut the joints on thefront of the drawer. (5) Getthe bottom ready; that is,plane the bevels on the underside as suggested in (2).(6) Assemble the membersdry to see that all fit prop-erly. (7) Take apart; gluethe joints by which the sidesare fastened to the front andthe joints by which the… … Fig. 436.Construction of Back. 292 WOODWORK FOR SECONDARY SCHOOLS. case the front, sides and back are put together, the backbeing kept just above the grooves in the sides. The bot-tom is then slipped in place under the back. It is fastenedto the front of the drawer only. Especial care shouldbe…
