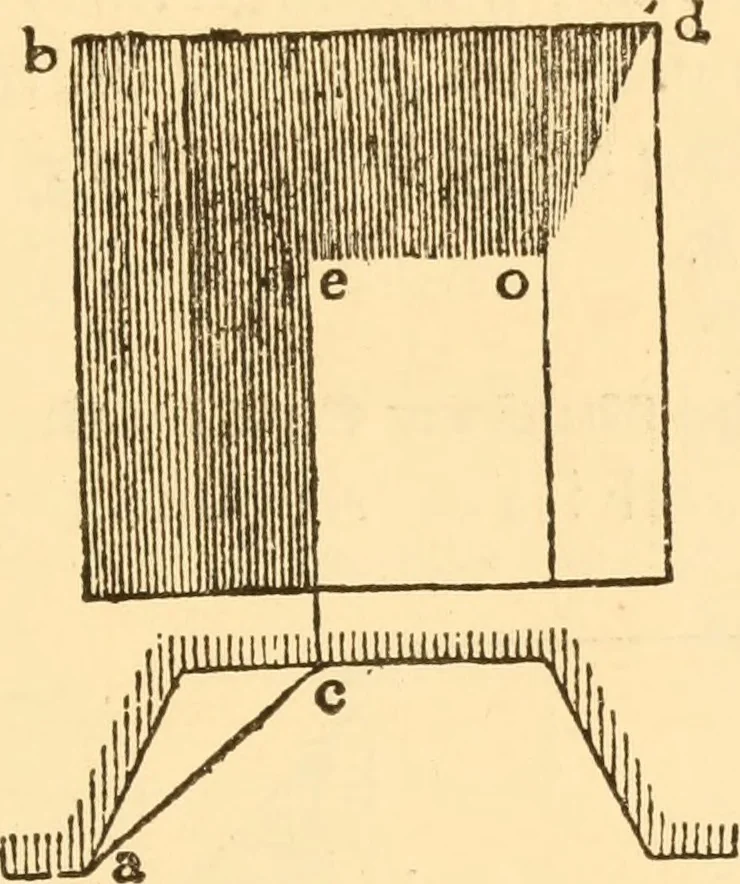

d ed willshow the extent of the shadow. This applies only wherethe back of the recess is parallel with the face of the wall. _ 676.—To Find tlie Sliadour in a Reec§s, ii^lien llie Faceof the \l^aH is Inclined^ and the Back of the Recess isVertical.—In Fig. 438, A shows the section and B the eleva-… … Fio. 439. and /cast the rays di and fh ; from /, through //, draw is;then i- i and ig will define the shadow. 677._To Find llie Shadow in a Fireplace.—From a andb {Fig, 439) cast the rays a e and b e, and from c erect the
