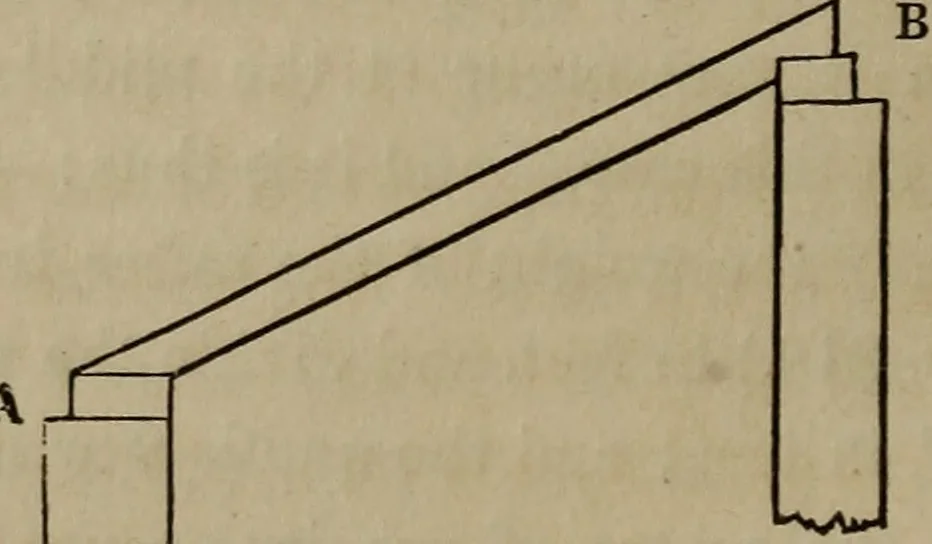

that each beam is in precisely theposition of the beam in Fig. 216. The horizontal pressures atB^ being equal and opposite, balance one another; and theirhorizontal thrusts at the tie-beam are also equal. (See Art.2Q^—Fig. 209.) When the height of a roof, {Fig. 217,) isone-fourth of the span, or of… … w^IaJ fig 218. FKAMING. 1Y3 280.—In shed, or lean-to roofs, as Fig. 216, tie horizontalpressure will be entirely removed, if the bearings of the raft-ers, as A B^ {Fig. 218,) are made horizontal—provided, how-ever, that the rafters and other framing do not bend betweenthe points of support. If a…
