Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 68

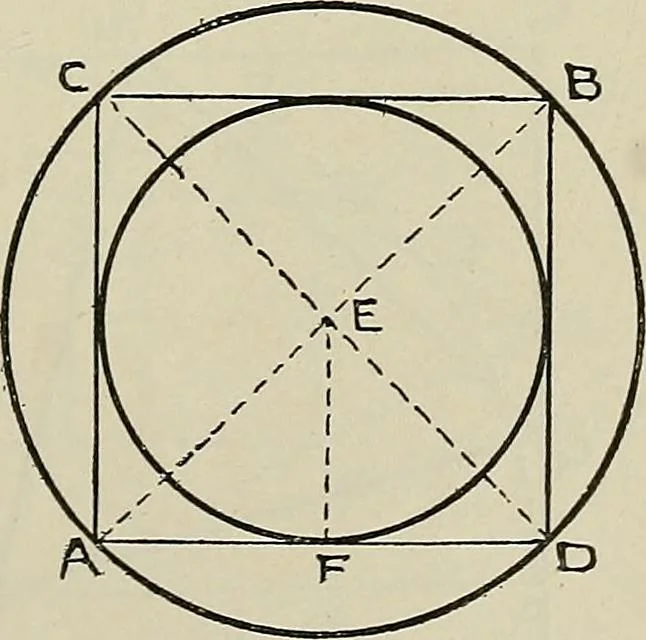

ng each otherat the points E, F, G, H (Prob. 84). EFHG- is the described square required. Peoblem 58. To inscribe a circle in a given square. Draw the diagonals AB and CD intersecting each otherat E. Erom E draw EF perpendicular to AD. With E ascentre, and EF as radius, draw acircle. This will be… … PRACTICAL PLANE GEOMETRY CHAP.
Geometrical drawing
