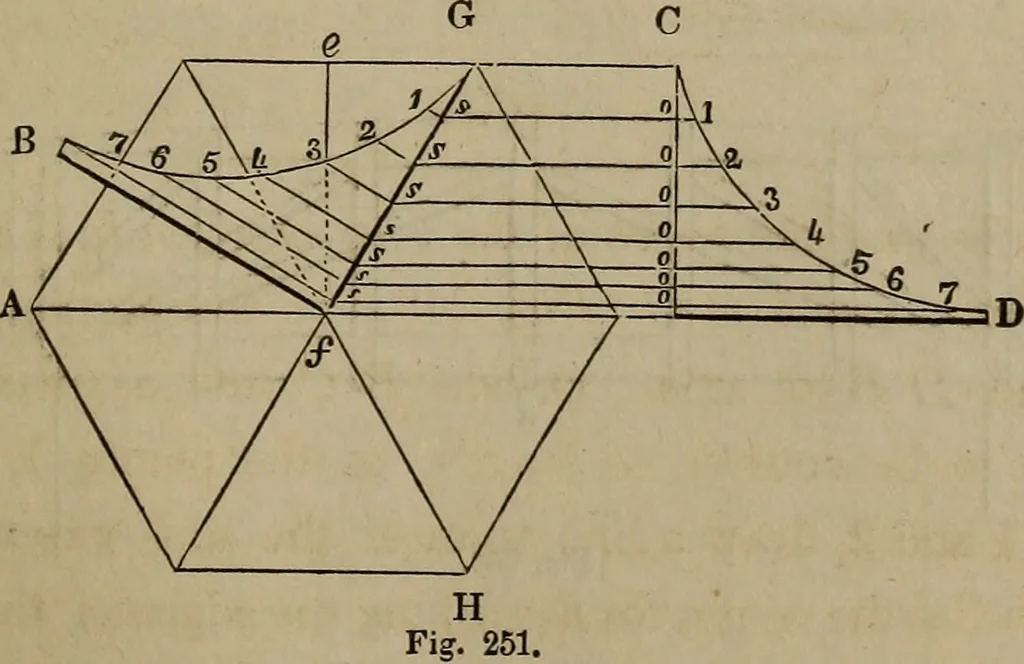

equal to e 4 in the previous figure, and c 5 equal to c 5 also in theprevious figure; then describe the inner edge of the board, H^according to Art. 87 : the outer edge can be obtained by gaugingfrom the inner edge. In like manner proceed to obtain the nextboard—taking p 5 for half the chord and p… … 398. —7b find the shape of the angle-rih for a polygonaldcme. Let A G H, {Fig. 251,) be the plan of a given dome, and 292 AMERICAN HOUSE-CARPENTER. C DsL vertical section taken at the line, ef. From 1, 2, 3, &c..in the arc. C D, draw ordinates, parallel to A D, to meety G;from the points of…
