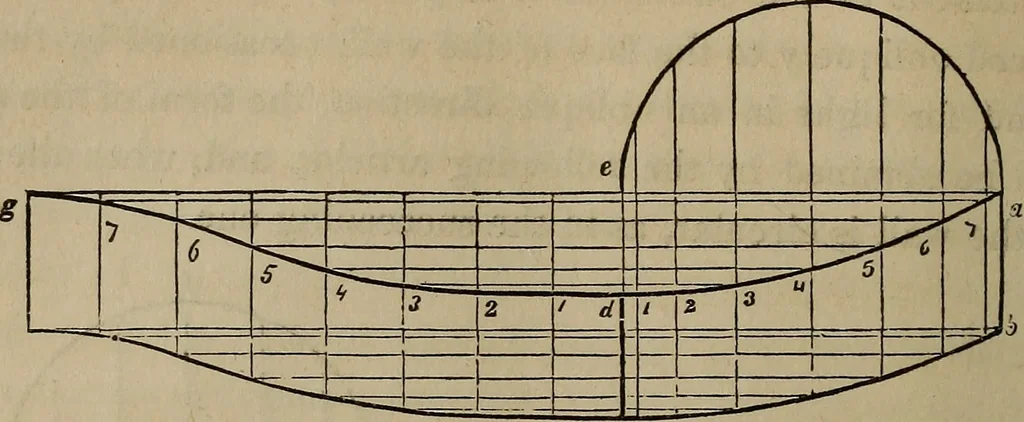

lines tomeet corresponding perpendiculars from eg; then those pointsof intersection will give the curve line, d g, which will be theone required for the edge of the soffit. The other edge, c h, isfound in the same manner. 448.— To find the form of the soffit for circular toindov^-heads, when the… … Fig. 284. Proceed as in the foregoing article to obtain the line, d g; thenthat will be the curve required for the edge of the soffit,- theother edge being found in the same manner. If the given vertical section be taken in a line with the face ofthe wall, instead of at right angles to the face of…
