The American house-carpenter; a treatise on the art of building, and the strength of materials (1867)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York, J. Wiley · leaf 353

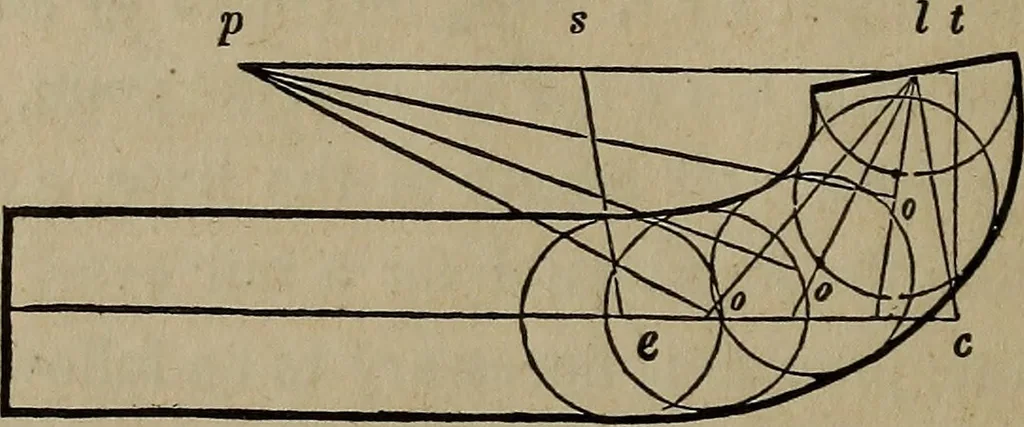

Fig 295. 462.—Case 2 -^ When the cylinder is large. Fig. 295 re- uo AMERICAN HOUSE-CARPENTER. presents a plan and a vertical section of a line passing through thecentre of the rail as before. From b, draw b k, parallel to cd; ex-tend the lines, i d and J e, until they meet kbink and/; from n,draw n… … Fig. 296. draw c t^ at right angles to e c, and equal to c if at Fig. 295 ; from^, draw t p, parallel to c e, and make 11 equal to ^ / at Fig. 295 ;complete the parallelogram, eels, and find the points, o, o, o, asbefore; then describe the circles and complete the mould as inFig. 293 The difference…
