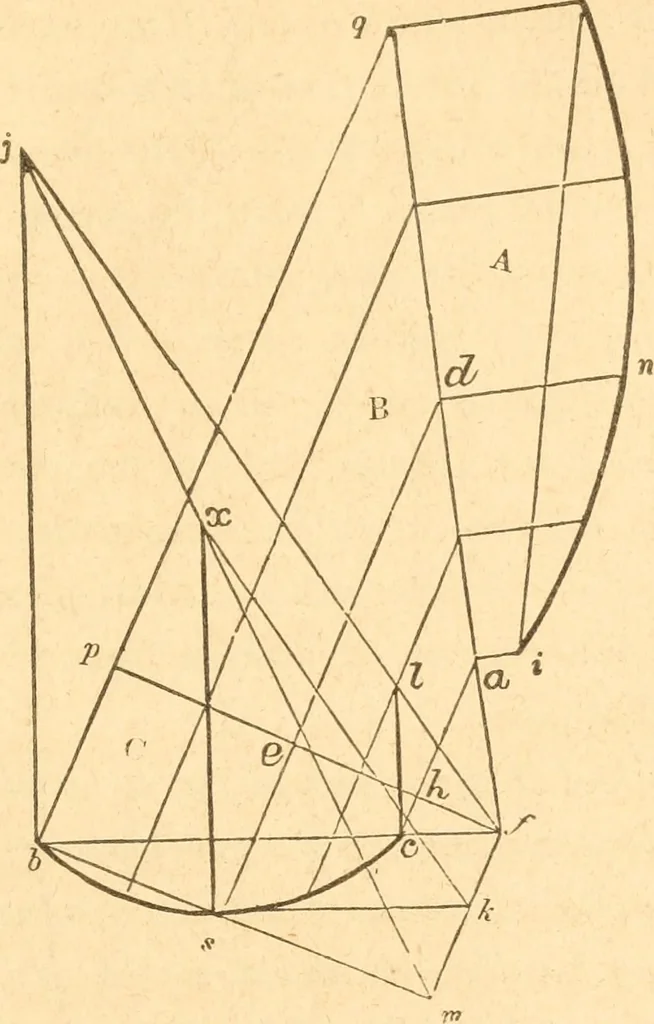

ugh three given points in its curved surface :one perpendicularly over 6, at the height, bj; one perpendicu-larly over 5, at the height, s x; and the other over c, at the height,c I—these lines being drawn at right angles to the chord of thebase, b c. Fromj, through Z, draw a line to meet the chord… … Fig. 294. plane of the base. This line can be proved to be the intersectionof these planes in another way ; from 6, through 6\ and from^*,through .-r, draw lines meeting at rn ; then the point, tu, will bein the intersecting line, as is shown in the figure, and also atFig. 293. From/, draw/p, at…
