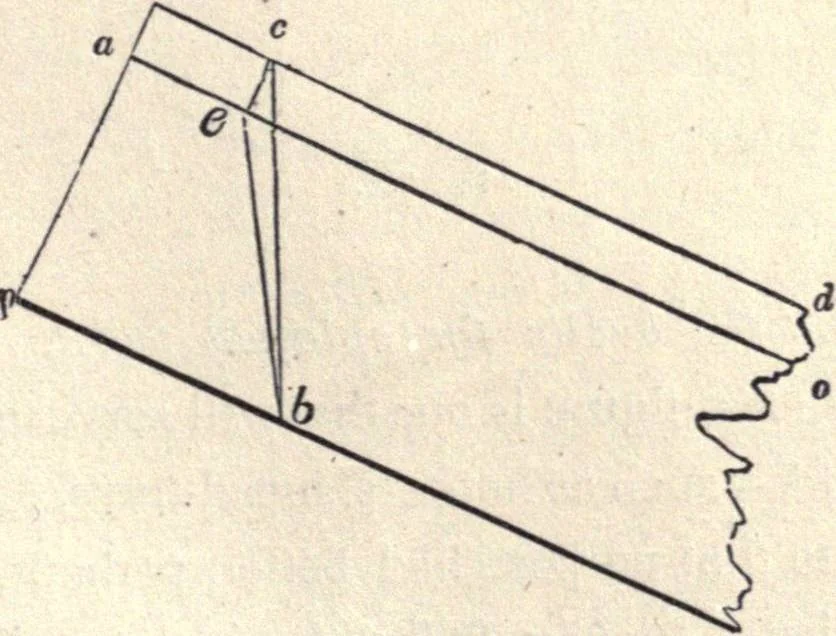

, the thickness necessaryto get out the twist may be ascertained according to Art. 474—taking the vertical distance across the falling-mould at the joints,and placing it down from the two outside heights in Fig. 315 or316. After bevilling the plank, the moulds are applied as at Art.476—applying the… … Fig. 322. 483. To apply the moulds without bevilling the plank. Make w p, (Fig. 322,) equal to w p at Fig. 320, and the angle,bed, equal to b j I in Fig. 315 ; make p a equal to the thick-ness of the plank, as w a ir. Fig. 320, and from a draw a o. pa-rallel to w d ; from c, draw c e, at right…
