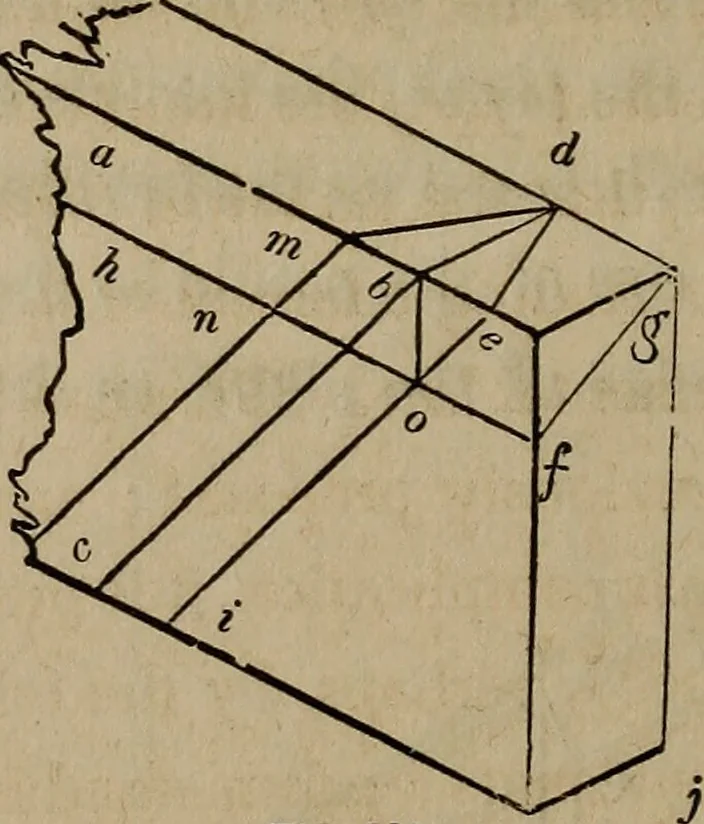

ed edge of the plank, which reaches from p to Wyis supposed to be in the plane of the paper, and the point, a, tobe above the plane of the paper as much as a, in Fig, 320, is dis-tant from the line, wp ; and the plank to be revolved on p 6 asan axis until the line, p w, falls below the plane of the… … Fig. 823. 484.— To find the b evils for splayed work. The principleemployed in the last figure is one that will serve to find the bevilsfor splayed work—such as hoppers, bread-trays, (fee.—and a wayof applying it to that purpose had better, perhaps, be introducedin this connection. In Fig. 323, a 6…
