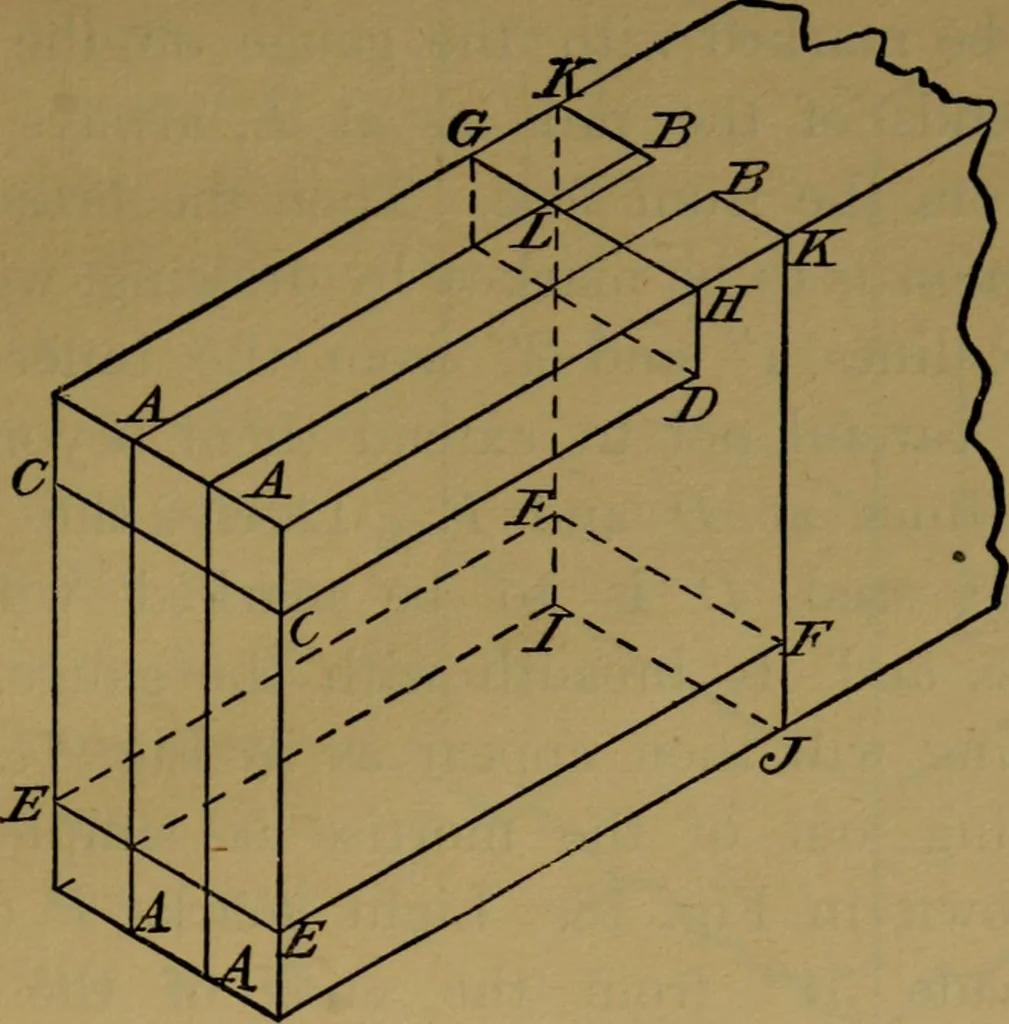

similar drawing of the end of the rail or tenon-piece, tnrned round.so that the shoulder A Bis towards you, and the tenon C and the studD are visible. From these drawings you will 160 Wood - Working. 161 be able to understand the way. of markingout this joint. As the tenons are to project half an… … Tvy.7% a mark is to be made first, all around eachrail 3 from the end, and a second mark10 from this, which will be 3 from theother end. These are the marks at A B, Fig.76, which show the shoulder of the tenon. 162 Manual Training. They should be interrupted on the outer edge at the middle, as at…
