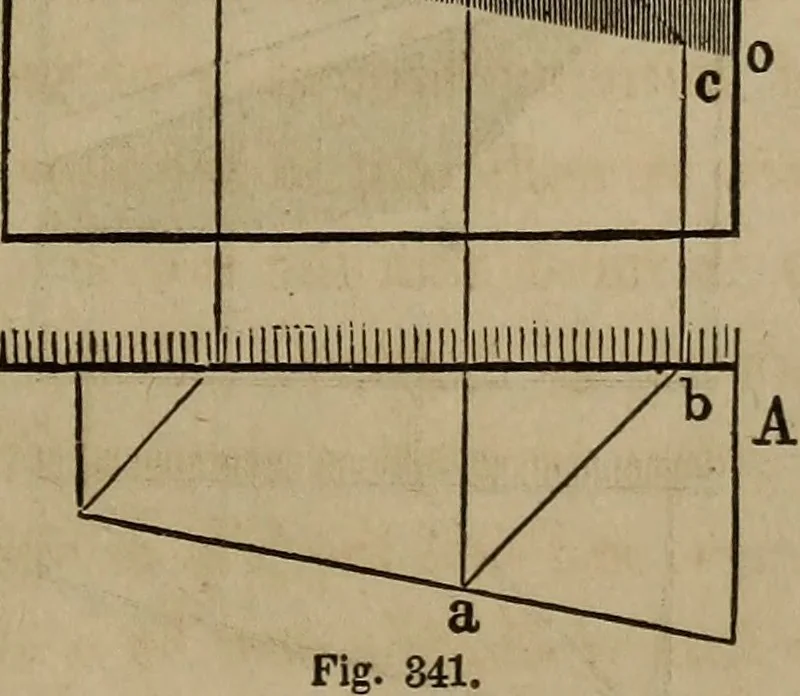

Fig. S40. from the wall; from/, draw/^, at the customary angle, and fromc, drop the vertical line, c g, intersecting f g dX g; from g, drawg e, parallel to the shelf, and from c, draw c d, at the usual angle ;then the lines, c d and d e, will determine the extent of the shadowas before. lIlIilH B … 503.—To find the shadow cast hy a shelf , which is wider atone end than at the other. In Fig. 341, A is the plan, and Bthe elevation. Find the point, d, as in the previous example, andfrom any other point in the front of the shelf, as a, erect the perpen-dicular, a e; from a and e, draw a h and e…
